Ranger® 225 Engine Driven Welder (Kohler®)

ARM YOURSELF WITH THE RIGHT WELDER. The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes - stick, TIG, MIG or flux cored. Whatever the process or application, arm yourself to get the job done and get it done right the first time.

Features:

• Totally Enclosed Case: Engine is fully protected with 3 service access doors that promotes low noise - 76.4 dBA sound level at 23 ft. (7 m) and 100.7 dB sound power (Lwa) at rated output.
• Versatile DC Welding: Smooth DC welding output for a broad range of stick electrode types. MIG, flux-cored and TIG capable (with optional equipment).
• 10,500 Watts Peak Single-Phase AC Generator Power: 9,000 watts continuous power for generator output, plasma cutter or inverter welder. Power-up lights, grinder, and power tools.

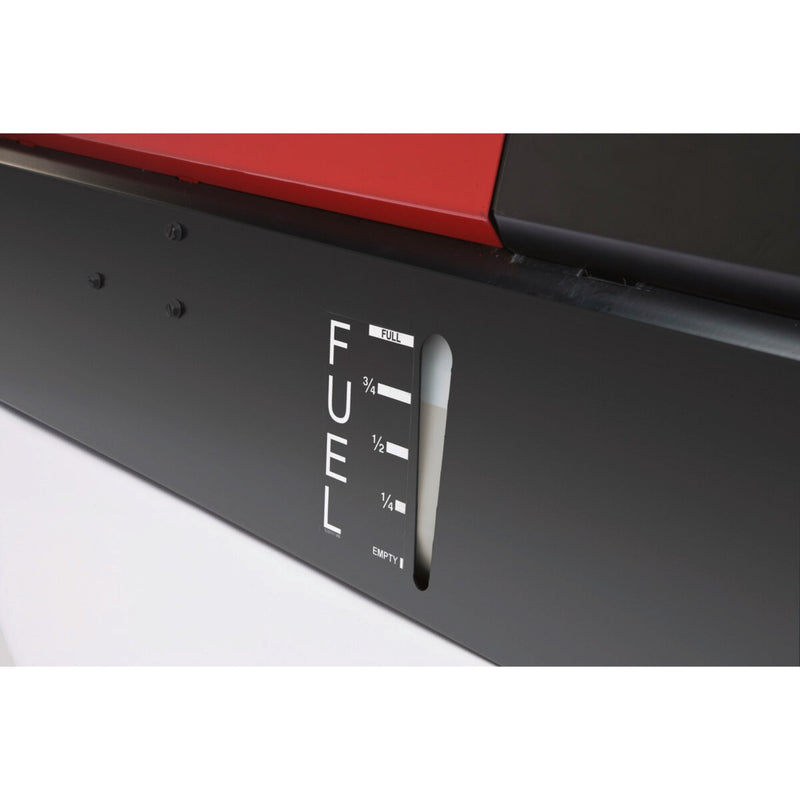

• 23 HP Kohler® Gasoline Engine: 2 cylinder, 4 cycle overhead valve air-cooled design. Oil drain extension for easy oil changes. 12 gallon tank for extended run times. Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
• Rugged Reliability: Welding and AC generator outputs rated at 104⁰F (40⁰C).


What's Included:

• (1) Ranger 225 Engine Driven Welder


Application:

• Construction; General Fabrication; Maintenance & Repair

General Specification:

Engine Driven Welders Specification:
