Long Fast Clamping Bolt (Burnished)

par Siegmund
Original price $92.74 - Original price $92.74
Original price
$92.74 - $92.74
Current price $92.74

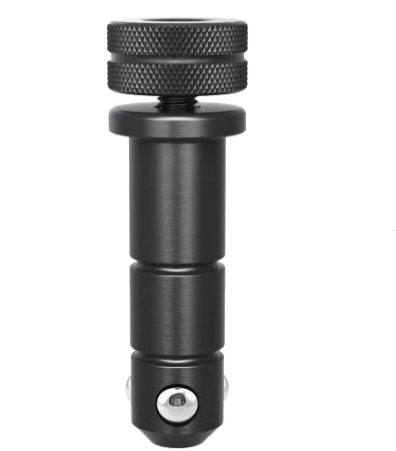

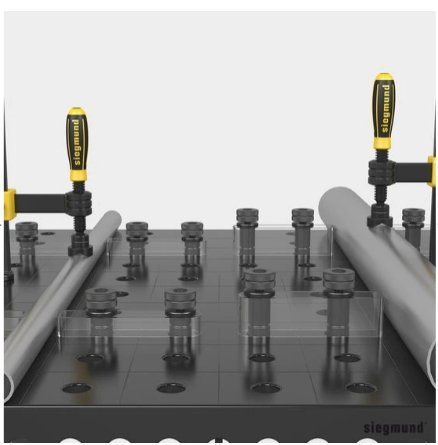

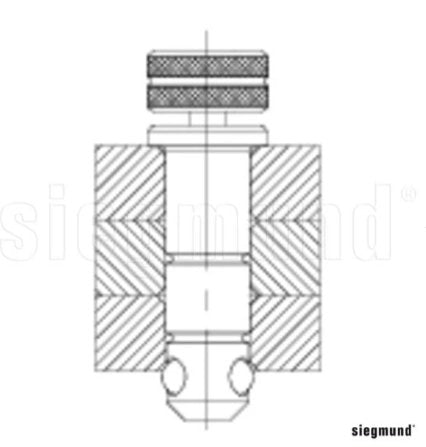

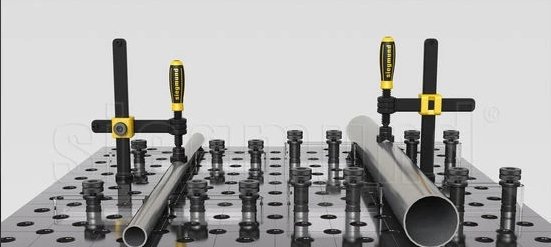

The Siegmund Burnished Fast Clamping Bolt with twist-lock, perfect for connecting 3n 3 Siegmund components. It features especially large balls, which protect the bevel of the bore holes as a result of low surface pressure. The fourth ball located in the center, reduces internal friction and strengthens the power of the handwheel. The new design of the bolt is not equipped with O-rings, but it still is easy to clean. The clamping torque dependent on table type.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Specs and Features:
- Item No. 2-280512
- Length: 120mm (4.72'')
- Diameter: 28mm (1.10'')
- Shearing Force: 220kN
- Tightening Torque Steel: 25Nm
- Tightening Torque Aluminum: 10Nm
- Tensile Force: 25kN
- Weight: 1.4 Ibs.
