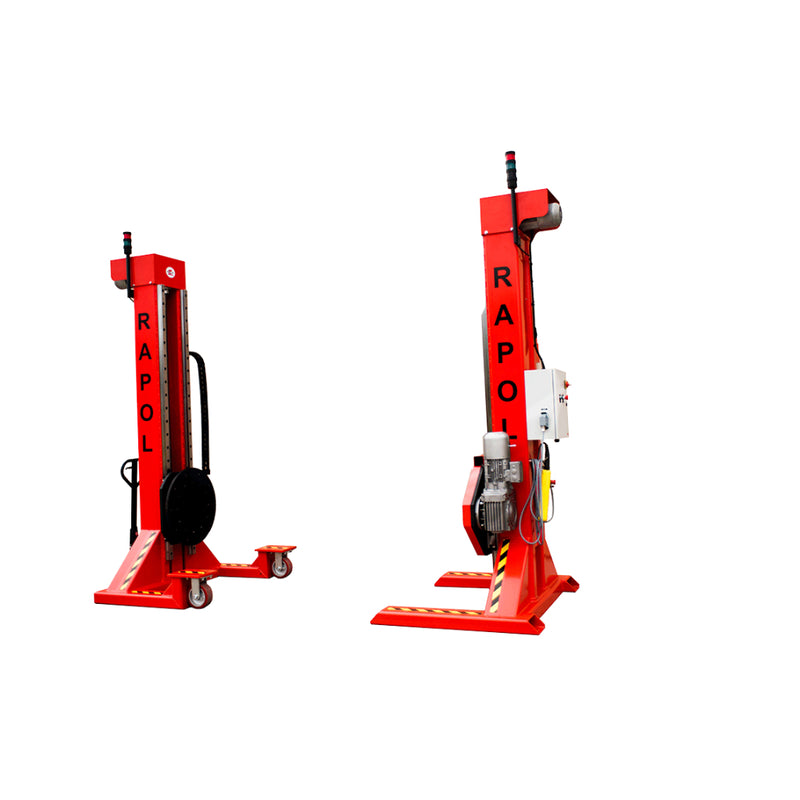

Rapol MADE IN CANADA HTE-80 Headstock & Tailstock Positioner

Electric Head & Tailstock Positioner

This heavy duty 15 ton electric turning roll set includes a set of turning rolls; one that rotates at the press of a pedal, and another that stays idle. The included rollers accommodate pipe from 10" up to 144" in diameter, and weights up to 30,000 pounds.

Technical Specifications:

• Head Stock Capacity 4,000 lbs

• Tail Stock Capacity 4,000 lbs
• Total Apparatus Capacity 8,000 lbs
• Offset from Table Face 6” (head stock and tail stock)
• Eccentricity of CG from Axis 6”
• Rotational Torque 48,000 in-lbs (8,000 lbs @ 6”)
• Rotation Motor 2 HP AC VFD
• Speed Range 0.05–1.13 RPM (to be confirmed)
• Height Adjustment Centre of table 36”–72” (36” travel) — independent
• Table Size 36” — configuration to be confirmed
• Chuck Size Optional — see optional features
• Carriage Travel Optional (tail stock)
• Grounding 1,000 A rotary ground (500 A / 800 A / 1,500 A optional)
• Safety Self-locking drive reducers and brake motor
• Light Curtains Optional
• Weld Cell Cage Guarding Optional

Controls & Power:

• Rotation Speed One-turn potentiometer
• Foot Switch On/off
• Directional Forward / Reverse
• Emergency Stop Mushroom-style E-Stop push button
• Remote Console Houses controls in a convenient, mobile location
• Voltage 480V / 575V, 3 PH, 60 Hz (others available)

Positioner: Using our positioners, the operator can rotate or tilt the structure to the optimum position. They provide precise positioning and smooth rotation. An on/off foot switch on 10 feet of cable provides hands-free operating convenience. They're the ideal machines to increase both your productivity and profitability.

Control: The Variable Frequency Drive (VFD) system provides proper weld speed settings and steady rotation rates. Rotation speeds are electronically controlled in both forward and reverse directions.

Drive: A heavy-duty, self-locking worm-gear reducer on the rotation drive positively prevents the load from moving unless the worm gear is revolving (only when the foot pedal is engaged).

Weld Ground: Another convenient feature is the preloaded taper roller bearing mounted table spindles, which assure steady weld-ground current conduction without the use of wearable parts such as brushes or clamps. Coupled with an auxiliary rotary grounding system, this provides consistency under increased amperage loads.

Electrical System: The electrical control components are housed in an easy-access cabinet at the back of the machine. Components and wiring are neatly laid out and labelled for easy troubleshooting.

Control Panel: User-friendly and positioned on the back of the machine. Custom units are available.

Manufacturing: All of our equipment is engineered, manufactured and distributed from our facilities in Woodstock, Ontario. All equipment is made using Canadian and US components.

Included With Standard Purchase:

• Drive Headstock With remote console
• Idler Tailstock Independent height adjustment
• Rotary Ground 1,000 A

Available Upgrades:

• Wireless Controls: Redundant buttons on the head-stock control panel
• Rolling Tailstock (Caster Option): Tailstock-pump lifting system
• Tailstock Floor Travel Linear Rail: 10 ft. section(6 foot travel), additional sections in 5 ft. increments
• Elevation Synchronization: Dual VFDs, encoders and inverter-duty motors
• Semi-Automation - Servo motor upgrade + amplifier + PLC: 3 servo motors — 2 for elevation (head stock and tail stock) and 1 for rotation
• Full-Automation - Programmable Process with HMI Control: Includes the semi-automation upgrade kit, Synchronization and process sequencing, Software customization
