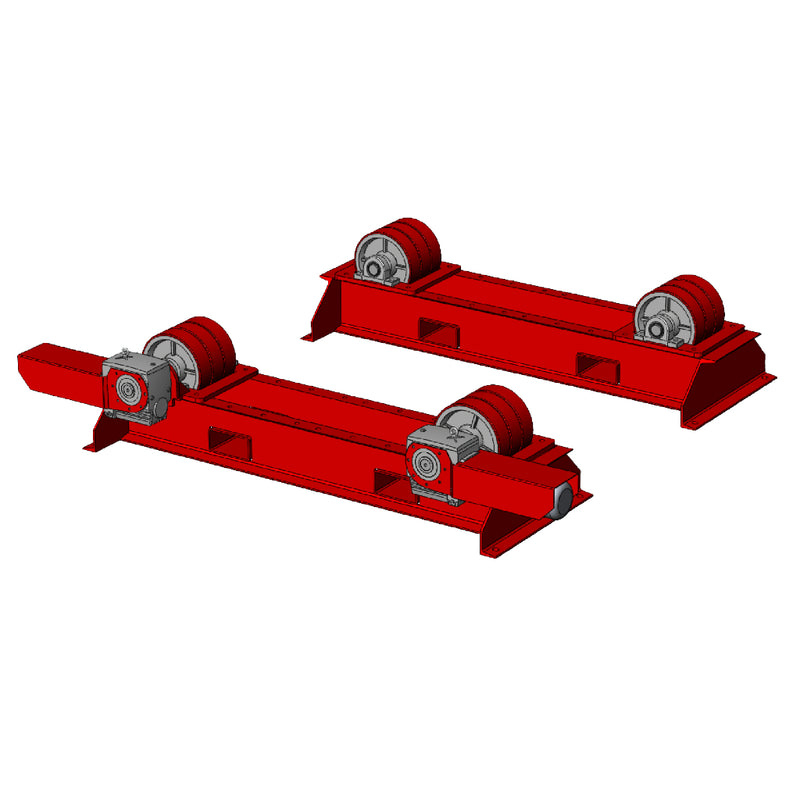

Rapol MADE IN CANADA TR-300 Automatic Turning Rolls (10" to 144")

Electric Turning Rolls for up to 144" Pipe

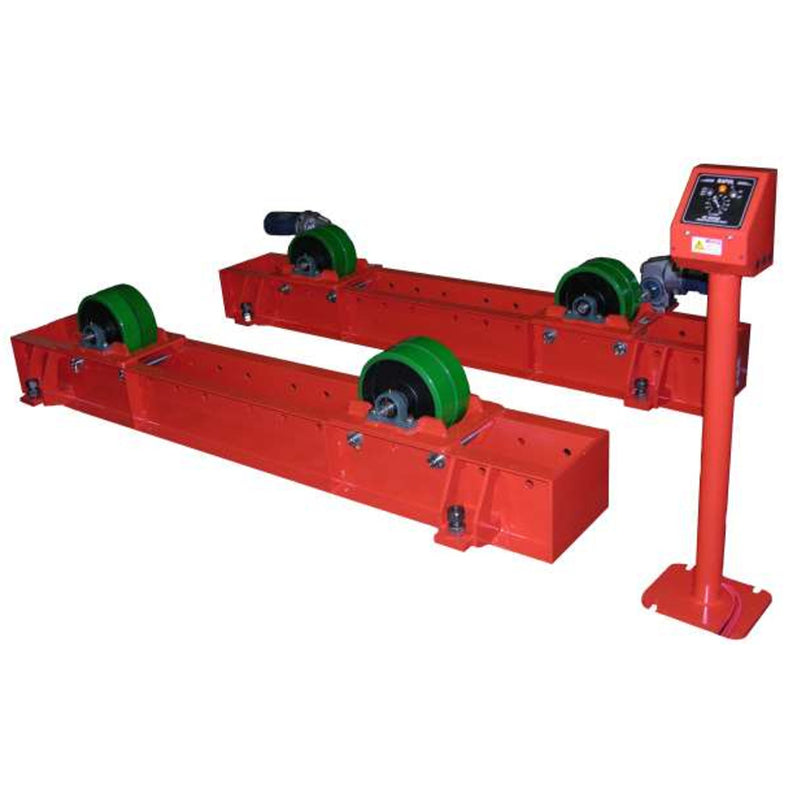

This heavy duty 15 ton electric turning roll set includes a set of turning rolls; one that rotates at the press of a pedal, and another that stays idle. The included rollers accommodate pipe from 10" up to 144" in diameter, and weights up to 30,000 pounds.

Features:

• Includes one drive and one idler
• Includes remote console and foot switch
• Accomodates pipe from 4" to 50" diameter
• Adjustable IPM from 1.5-50 IPM
• 6" Wide x 12" Diameter caster wheels
• Eight indexed wheel spacing locations for extremely fast and easy adjustment
• Adjustable drive tension
• High frequency protected
  • Safe for performing TIG root passes with HF
• Choice of foot control options
• 1/2 HP DC drive motor
• 115V input power with a 10A draw
  • Can use on any household outlet

• 1 Year warranty
• Maximum load capacity of 30,000 pounds (set)
  • 15,000Pounds max for each the drive and idler
  • Maximum capacity of 45,000 pounds with additional idlers

Control Options Available:

• Simple on/off foot switch
• Variable speed foot switch (max speed set at console)
• Forward/Reverse dual foot switch
