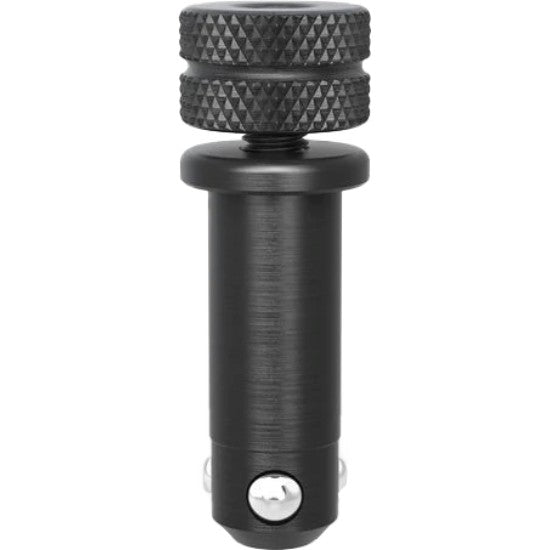

Fast Clamping Bolt without Slot (Triple)

Original price $70.68 - Original price $70.68
Original price
$70.68 - $70.68
Current price $70.68
Intended to connect three system 16 components together at the same time.
This Siegmund bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body.

The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist-lock is the ideal connecting element between Siegmund components.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.
Specs and Features:

- Item No. 2-160513
- Burnished
- For Clamping 3 Siegmund Components
- With Screw Top
- Length: 65 mm (2.26")
- Diameter: 16 mm (.63")
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.22 lbs.
