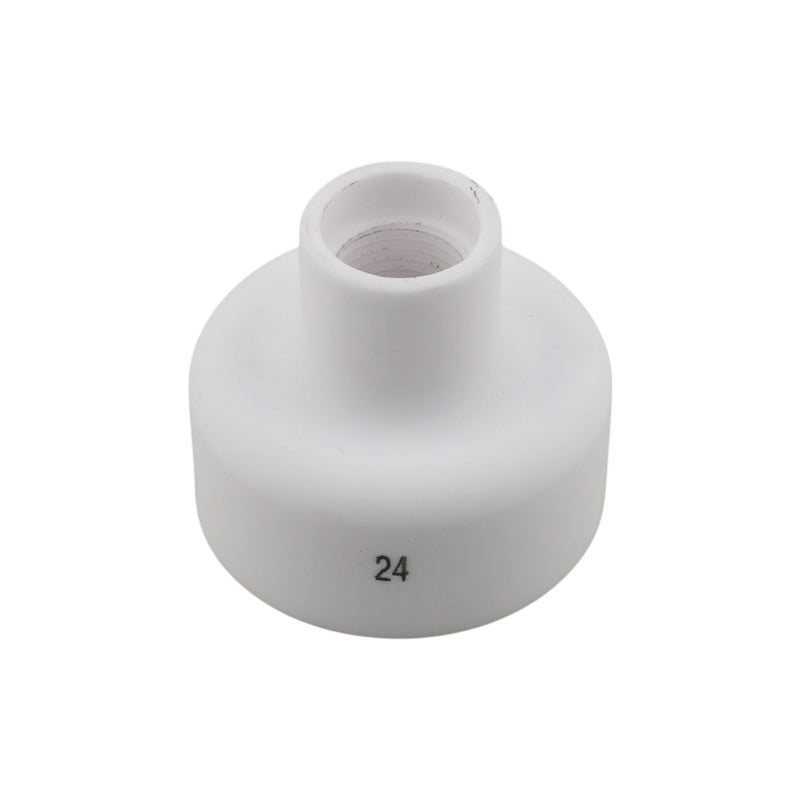

Weldready Size #24 White Ceramic TIG Cup W/ Diffuser Screen

#24 Ceramic Cup

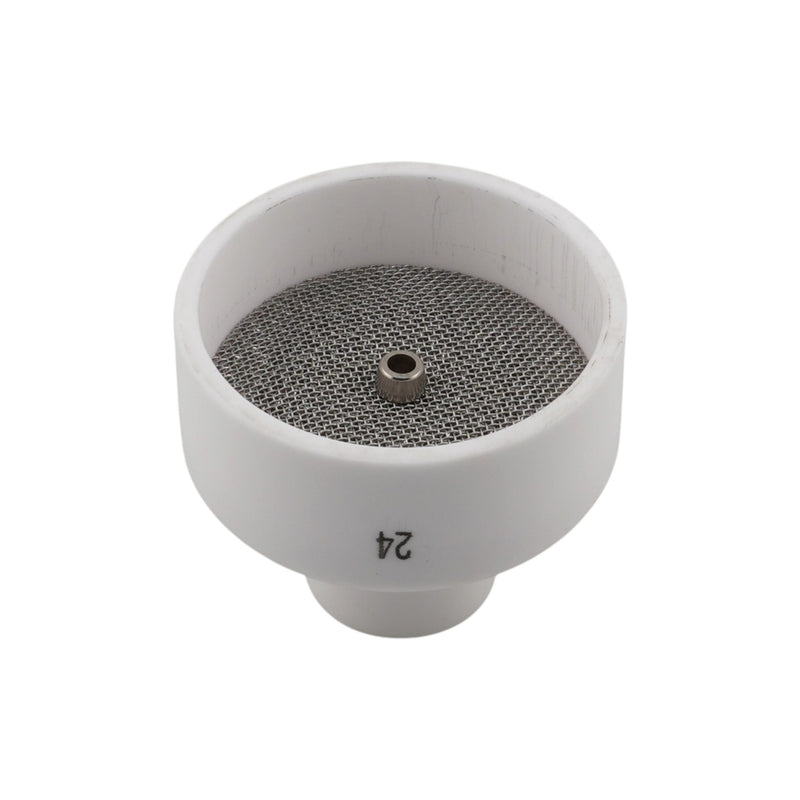

The JABU-JABU #24 ceramic TIG cup is our largest TIG cup specialized for use with stainless steel and exotic metals. With a built in diffuser screen, this product offers superior shield gas coverage. Ceramic cups offer superior thermal shock resistance when compared with pink alumina cups.

The pre-installed diffuser screen is made to a superior standard compared with OEM.

Features:

• Size #24
• Holds heat better than alumina
• Offers superior thermal shock resistance compared to alumina
• Includes diffuser for 3/32" tungsten
• Recommended flow rate between 30-45 CFH
• Max tungsten stick out 1-3/8"
• 100% OEM Compatible

Set-Up Required  for 2 Series (9, 20) TIG Torch:

• 2 Series Gas Lens
• 2 Series Wedge Collet
• 2 Series Gas Lens Heat Shield

Set-Up Required for 3 Series (17, 26, 18) TIG Torches:

• 4 Series Stubby Gas Lens
• 4 Series Stubby Wedge Collet
• 4 Series Gas Lens Heat Shield
