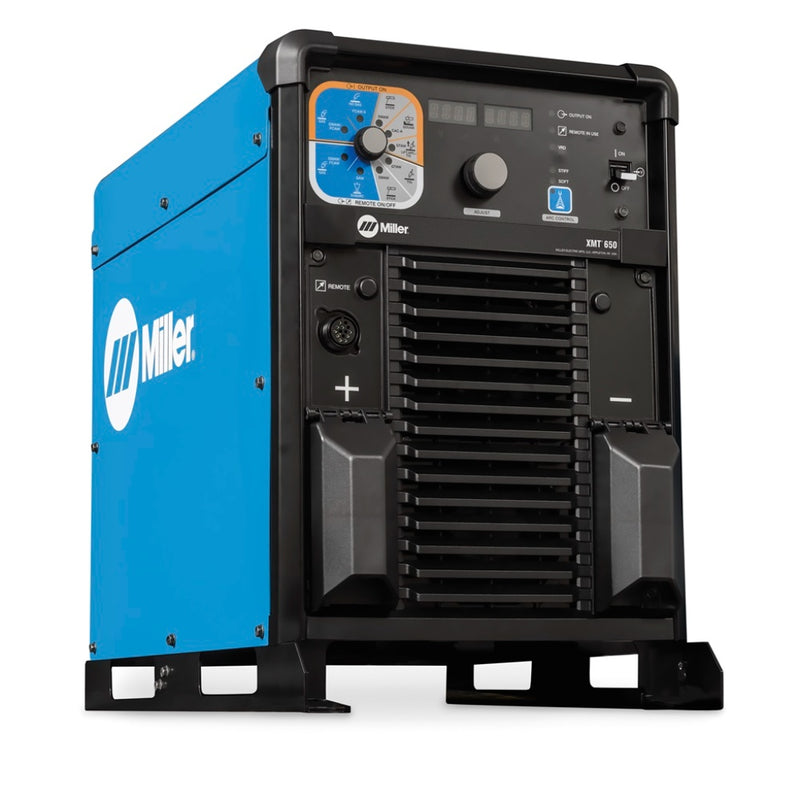

miller xmt 650 isometric view

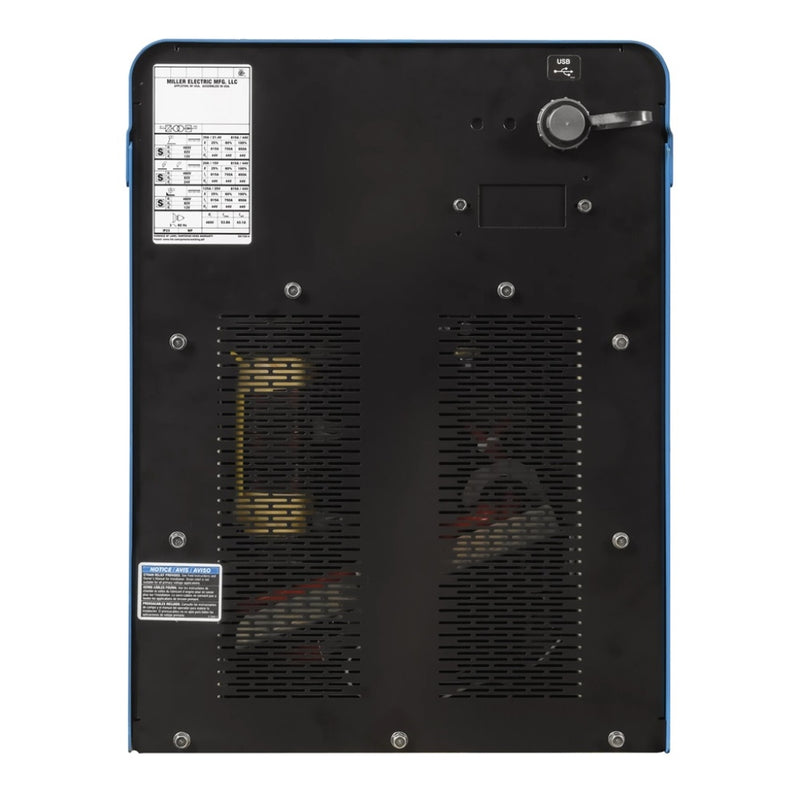

back of miller xmt 650

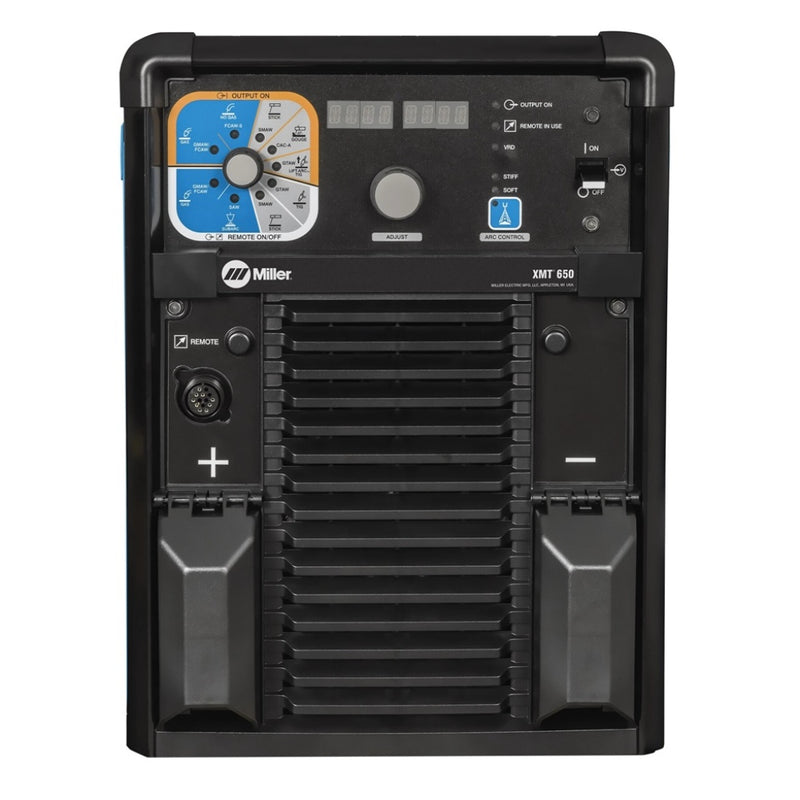

front of miller xmt 650

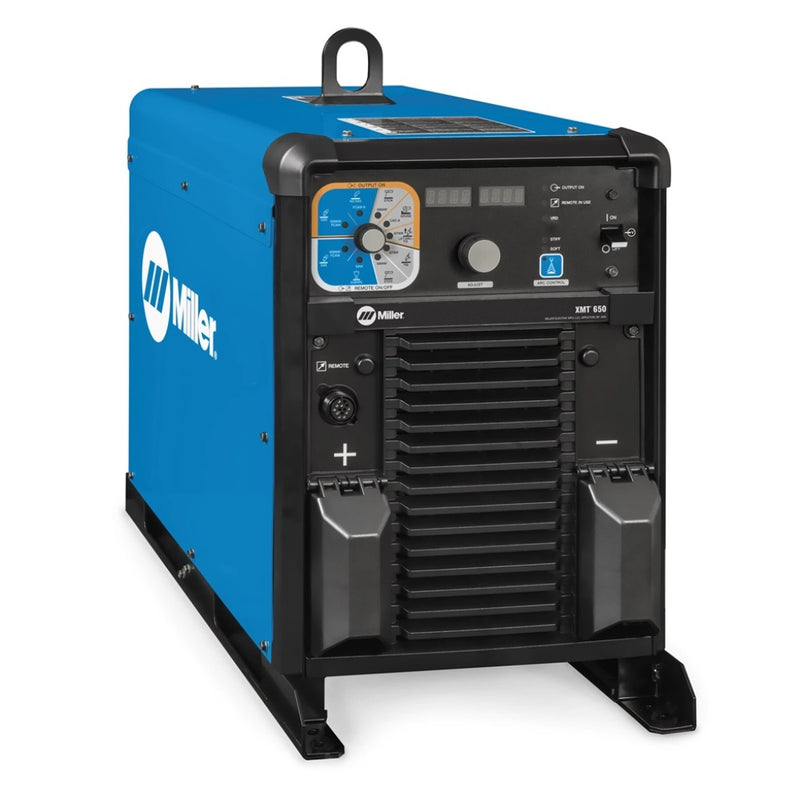

side angle miller xmt 650
miller xmt 650 isometric view
back of miller xmt 650
front of miller xmt 650
side angle miller xmt 650

XMT® 650 ARCREACH 575V Multiprocess Welding Power Source - 907845

par Miller Electric
UGC 907845
$12,346.26 - $12,346.26
$12,346.26
$12,346.26 - $12,346.26
$12,346.26
Request a quote

650 A All-in-One Welding Power for MIG, TIG, Stick, Gouging & More

Cuts expenses and maintenance with the XMT 650® ArcReach® Systems, eliminating the need for control cables. Maximize productivity in the fabrication shop and in the field. The robust design withstands harsh environments common in the field. It is ideal for structural steel fabrication, general construction, and shipbuilding.

POWER SOURCE ONLY

ArcReach® Technology
ArcReach capabilities increase jobsite productivity and efficiency by eliminating the time spent tracing weld cables hundreds of feet back to the power source because weld operators can make voltage adjustments at the ArcReach wire feeder or remote.

Cable Length Compensation
Cable Length Compensation (CLC™) ensures that the voltage a weld operator sets is the voltage they get by automatically adjusting voltage based on weld cable length, even hundreds of feet away from the power source.

Auto Remote Sense™ (ARS)
Detects if a remote control is plugged into the 14-pin receptacle and eliminates confusion of a remote panel switch.

Arc control
adjusts inductance to optimize MIG arc performance, or Dig control for Stick.

14-pin Receptacle
Provides a quick, direct connection to Miller® wire feeders. Capable of remote voltage control.
Title XMT® 650 ARCREACH® 575V
Applications Boat/Yacht
Fabrication
Gouging
Industrial Welding
Pressure Vessel
Stainless Steel
Structural Welding
Welding
Industries Construction & Fabrication
Heavy Equipment
Railcar
Shipbuilding
Amperage 10 A - 815 A
Weldable Metals Aluminum
Mild Steel
Specialty Metals
Stainless Steel
Steel
Rated Carbon Diameter 3/8 in (9.5 mm)
Current Type DC
Max Open Circuit Voltage 87 VDC
Rated Output 650 A at 44 VDC, 100% duty cycle
Voltage Min 10 VDC
Voltage Max 65 VDC
Portability Handle(s)
Running Gear / Cart (Optional)
Weld Output 15 - 815 A, 10 - 65V
Input Voltage 575 V
Input Phase 3-Phase
Input Hz 60 Hz
Warranty 3 Years



CLICK HERE FOR FULL SPECIFICATION SHEET
