CM Industries Made in USA 360 Amp Binzel Style Fume Extracting MIG Gun - 15'

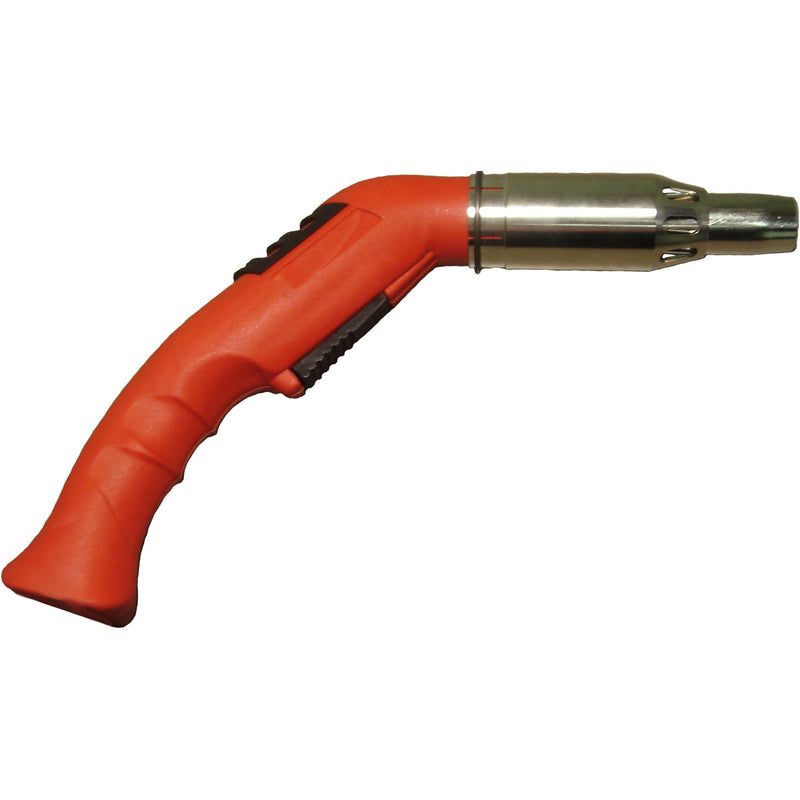

Binzel Smoke Eating MIG Gun

The CM Industries MIG Smoke Extractor Gun is designed to capture welding fumes directly at the source—right at the arc—without interrupting your workflow.

Unlike traditional extraction systems, this gun integrates fume extraction into the torch itself, helping improve air quality while maintaining the same welding performance and handling you expect from a standard MIG gun.

Most smoke eating MIG guns on the market today utilize patented OEM consumables that handcuff you into paying $5 per contact tip, and $30 per nozzle. This gun utilizes standard Binzel consumables which are readily available, long lasting, and cost effective.

Features:

• Extra strength, made in USA construction
• Ergonomic handle
• 15' Lead length
• Compatible with all common fume extraction vacuum systems
• Extracts fumes right at the source to greatly improve shop air quality
• 360 Amp rating @60%

• Wire capacity .030" (0.8mm) - 0.062" (1.6mm)

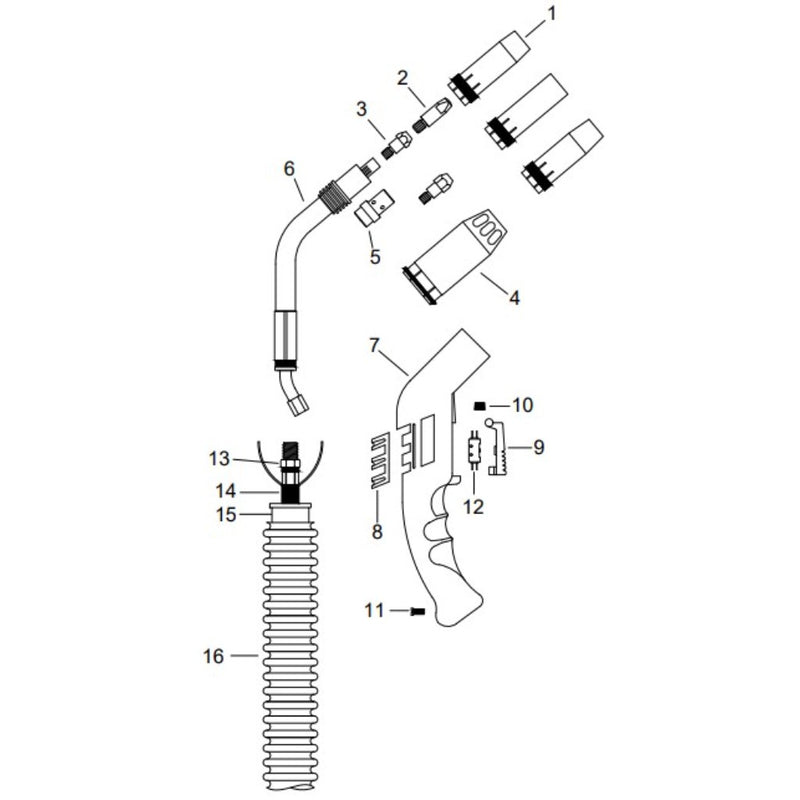

Consumables:

• Binzel M8 contact tips
• Binzel 165-52-xx MIG nozzles
• Binzel 122.90xx (241-0x-016) liners
• Binzel 046-52-003 insulator
• 160-08-402 Contact tip holder

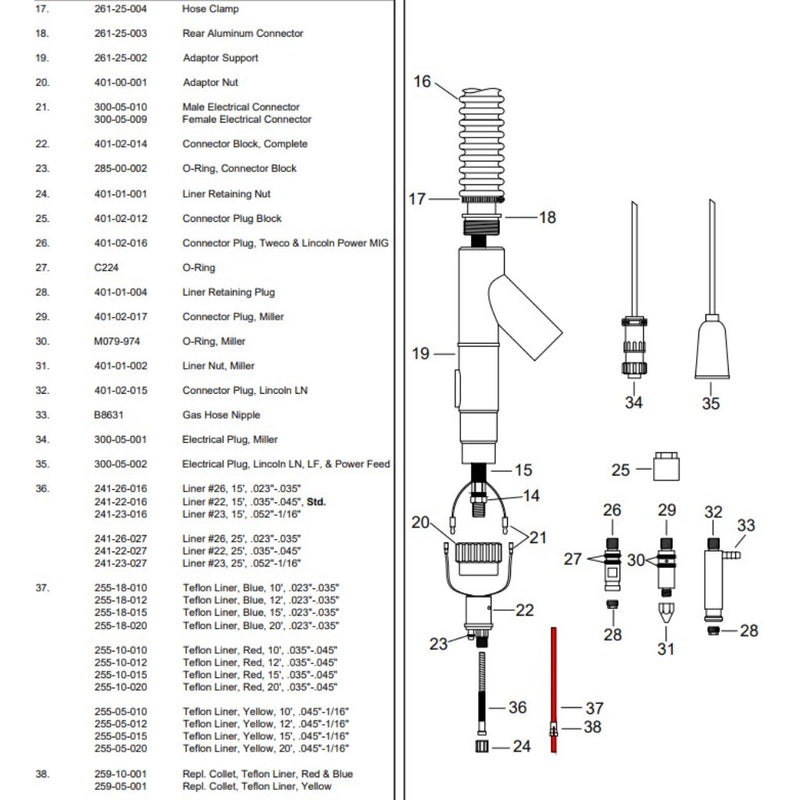

Machine Connection Options Available:

• Miller
• Lincoln PowerMIG
• Lincoln LF/Power Feed
• Lincoln LN
• We can configure to suit your machine. Send us a message if you are uncertain!

CLICK HERE FOR SPEC SHEET
