ESAB Warrior 500i MIG welder on Cart

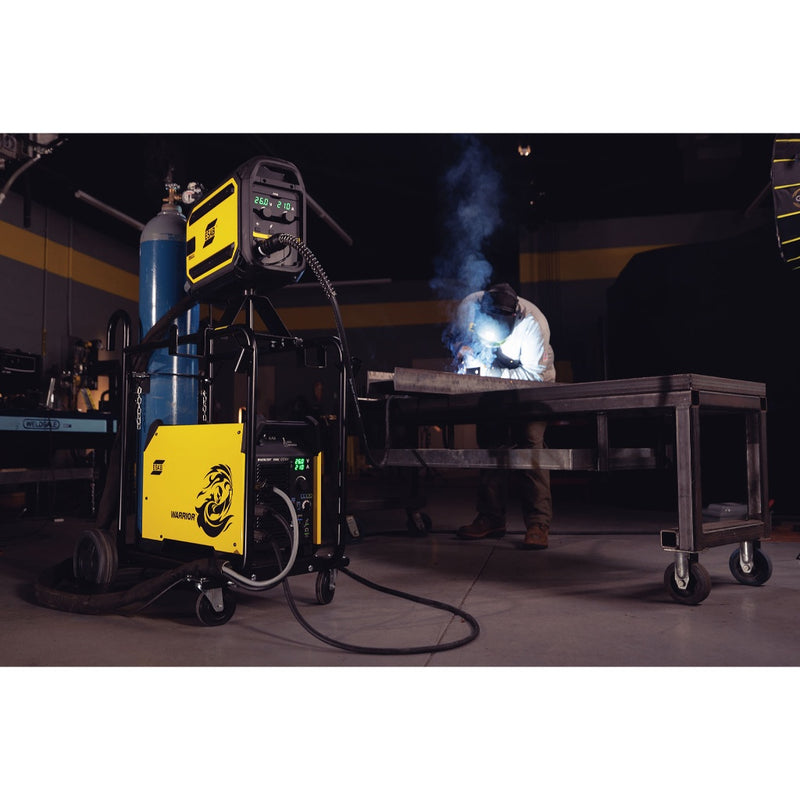

mig welding steel from esab warrior mig welder
ESAB Warrior 500i MIG welder power source and wire feed with MIG torch
ESAB Warrior 500i MIG welder on Cart
ESAB video comparing different ESAB Warrior models
mig welding steel from esab warrior mig welder
ESAB Warrior 500i MIG welder power source and wire feed with MIG torch

ESAB Warrior 400i MV Multi-Process Welder W/ Cart - 0558102696

by ESAB
SKU 0558102696
$11,223.72 - $11,223.72
$11,223.72
$11,223.72 - $11,223.72
$11,223.72
Availability:
In stock
Request a quote

Heavy-Duty 400 A Inverter Welding Power with Multi-Voltage & Multi-Process Capability

The ESAB Warrior 400i MV is a robust, industrial grade multi-process welding power source designed for heavy fabrication, construction, maintenance, and repair. With a wide input voltage range and inverter-based design, it delivers smooth, stable arcs across welding processes — from MIG/GMAW and TIG to Stick/SMAW and carbon-arc gouging. Warrior 400i MV offers up to 400 A at a 60 % duty cycle and adapts to three-phase power from 220 V to 460 V, providing versatile performance across a broad range of shop and field applications.

This unit is a perfect fit for Canadian ships that have lower voltage three phase power, but still need to achieve a high output.

Key Features:

Versatile Multi-Process Support

  • MIG (GMAW), Flux-cored (FCAW), Stick (MMAW), TIG (GTAW) and carbon-arc gouging capability — all from one machine.

  • Stable TIG arc control down to low amperage levels (~5 A).

Powerful Output & Duty Cycle

  • Up to 400 A at 60 % duty cycle, with a wide output range from 5 A to 400 A — ready for demanding welds and heavy fabrication tasks.

  • Excellent duty performance for long weld runs and tougher jobs.

Multi-Voltage Flexibility

  • Accepts 220 V–460 V 3-phase input (±10 %) at 50/60 Hz, making it a perfect fit for organizations that are not operating on three phase 575V

Rugged, Portable Construction

  • Durable IP23 rated enclosure built for harsh indoor/outdoor use and heavy-duty environments.

  • Handles and ergonomic design support mobility and lifting when needed.

User-Friendly Interface

  • Easy-to-read controls and glove-friendly knobs make setup and adjustments straightforward for operators in the field.

Advanced Performance Features

  • Short Circuit Termination (SCT) technology helps ensure the weld wire tip is in optimal condition for every start.

  • Hot Start and variable arc force control provide fine-tuned Stick welding performance across electrode types.

Specifications:

Feature Specification
Processes MIG/GMAW, FCAW, Stick/SMAW, TIG/GTAW, Carbon Arc Gouging
Max Output 400 A @ 34 V @ 60 % duty cycle
Output Range 5–400 A
Input Voltage 220–460 V 3-phase ±10 %
Frequency 50/60 Hz
Open Circuit Voltage ~56 V (typical)
Enclosure Rating IP23 (indoor/outdoor)
Weight ~52 kg (115 lb)
Dimensions ~712 × 325 × 470 mm
Protection IP23S class for harsh environments



Included in Package:

  • ESAB Warrior 400i power source 0465885880
  • ESAB Robust Feed Pro wire feeder 0445800885
  • Tweco Spraymaster V450 MIG Gun w/ 15 foot leads 10401833
  • Victor Edge 2.0 heavy duty argon regulator 0781-3641
  • Four wheel one cylinder cart 0349313450
  • Interconnection cable 0446160880
