FRK MK14 Clear TIG Cup W/ Diffuser Screen

FRK MK14 Quartz TIG Cup

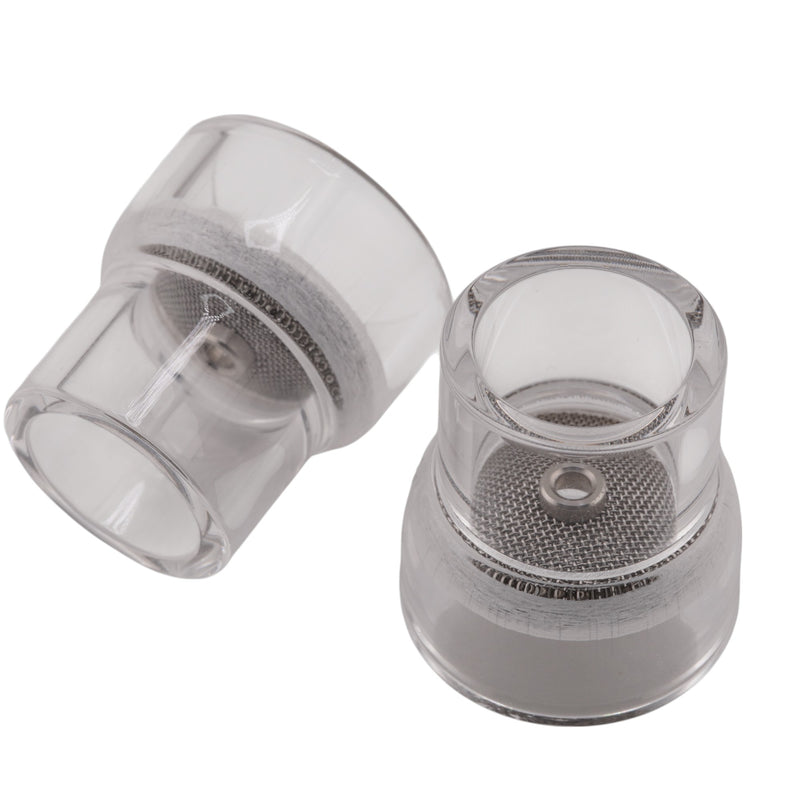

The FRK MK14 glass TIG cup is a large TIG cup specialized for use with stainless steel and exotic metals. With a built in diffuser screen, this product offers superior shield gas coverage. This cup is made of fused quartz, which can handle much more heat than Pyrex/borosilicate glass TIG cups

Features:

• Size #14
• Superior amperage rating compared to OEM

• Includes diffuser for 3/32" tungsten
• Recommended flow rate 30-36 CFH
• Max tungsten stick out 1"

• Sold as a package of 2
• Recommended to use two o-rings on gas lens instead of one

Superior Amperage Rating:

• Max Amps with 1/16"-1.6mm Tungsten 70-150A DC / 60-125A  AC
• Max Amps with 3/32"-2.4mm Tungsten 150-250A DC / 120-210A  AC
• Max Amps with 1/8"-3.2mm Tungsten 225-330A DC / 150-250A  AC

Set-Up Required  for 2 Series (9, 20) TIG Torch:

• 2 Series Gas Lens
• 2 Series Wedge Collet
• 2 Series Gas Lens Heat Shield

Set-Up Required for 3 Series (17, 26, 18) TIG Torches:

• 4 Series Stubby Gas Lens
• 4 Series Stubby Wedge Collet
• 4 Series Gas Lens Heat Shield
