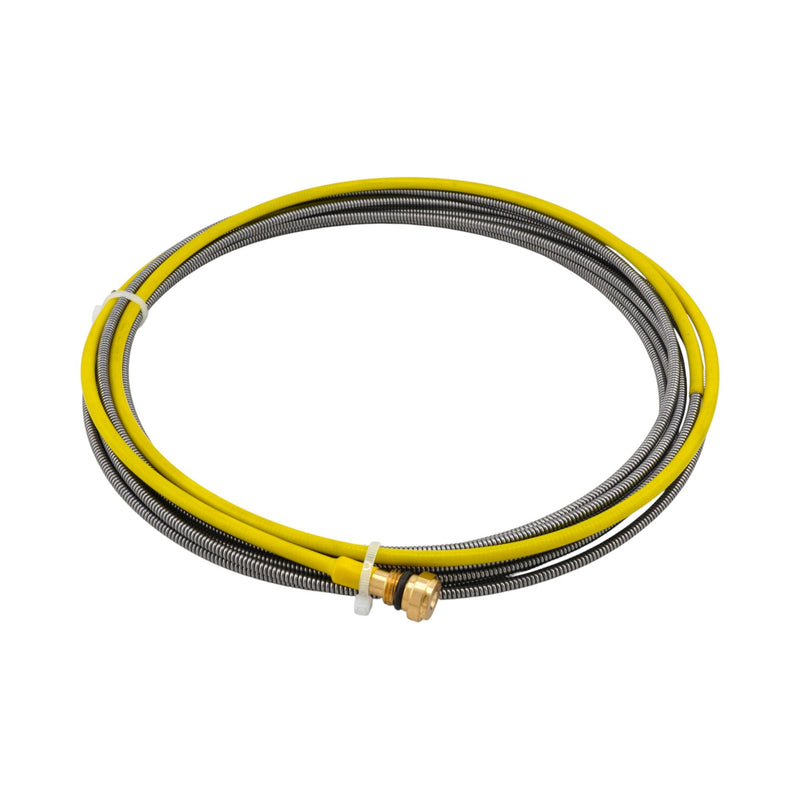

Bernard Centerfire universal conventional liner with yellow wrap indicating it's use for .023 and .030 MIG wire - L1A-15
Bernard Centerfire universal conventional liner with green wrap indicating it's use for .030 and .035 MIG wire - L2A-15
Bernard Centerfire universal conventional liner with white wrap indicating it's use for .035 and .045 MIG wire - L3A-15
Bernard Centerfire universal conventional liner with red wrap indicating it's use for .045 and 1/16 MIG wire - L4A-15
Bernard Centerfire universal conventional liner with yellow wrap indicating it's use for .023 and .030 MIG wire - L1A-15
Bernard Centerfire universal conventional liner with green wrap indicating it's use for .030 and .035 MIG wire - L2A-15
Bernard Centerfire universal conventional liner with white wrap indicating it's use for .035 and .045 MIG wire - L3A-15
Bernard Centerfire universal conventional liner with red wrap indicating it's use for .045 and 1/16 MIG wire - L4A-15

Bernard Universal Conventional Liner LxA-15

by Weldready
SKU L1A-15
$8.67 - $15.72
$8.67
$8.67 - $15.72
$8.67
Availability:
31 in stock, ready to be shipped
Availability:
27 in stock, ready to be shipped
Availability:
99 in stock, ready to be shipped
Availability:
84 in stock, ready to be shipped
Availability:
In stock
Availability: Ships in 1-3 business days
Options Available: L1A-15 - .023"-.030" Wire
Request a quote

Bernard Style Universal Conventional Liner

Replacement inner conduit liners for a variety of wire diameters. For use with conventional Bernard and Tregaskiss MIG guns. Has both an o-ring and a thread on the back end of the liner.

Features:

  • Manufactured to OEM specifications
  • Compatible with legacy Bernard Q-Gun, S-Gun, and T-Gun
  • Compatible with BTB MIG guns
  • Includes rubber O-ring and threaded end for installation into power pin
  • Colour coded wrapping clearly indicates intended wire diameter
  • Standard length of 15' (cut to size for shorter whips, 25' available upon request)

Part Numbers and Variations:

  • L1A-15 - .023"-.030" Wire - Yellow
  • L2A-15 - .030"-.035" Wire - Green
  • L3A-15 - .035"-.045" Wire - White
  • L4A-15 - .045-1/16" Wire - Red
  • L6A-15 - 5/64" Wire - Blue
