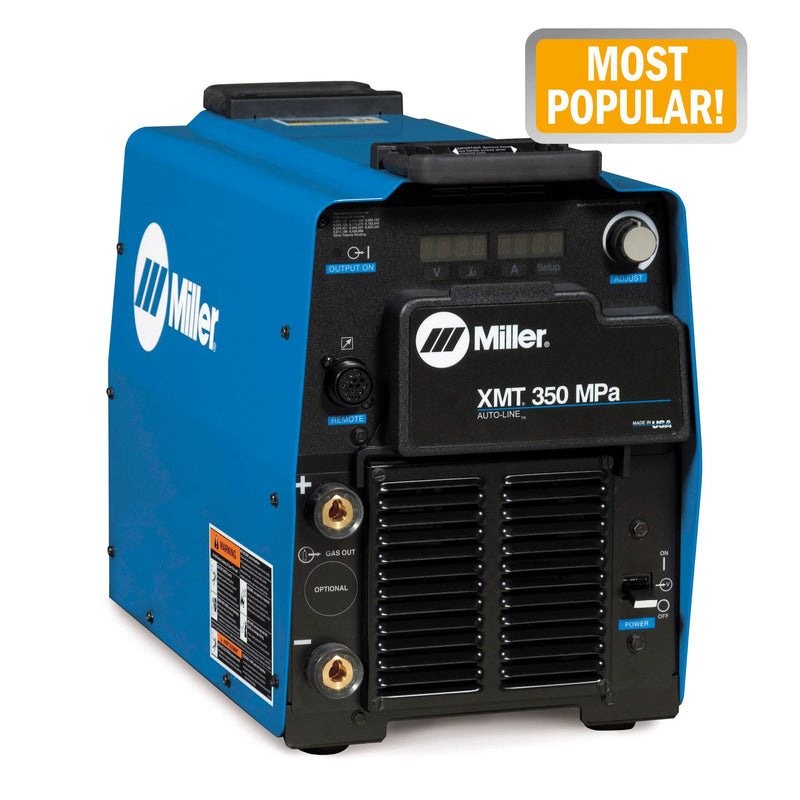

Miller XMT 350 MPa Power Source W/ Dinse Connection

Portability and excellent arc performance make the XMT family the most popular in the industry. The XMT 350 MPa offers built-in pulse programs for standard steels, high-strength steels and aluminum.

The Miller XMT 350 has been discontinued and replaced by the Miller XMT 400

Features:

Built-in Pulse programs

Provide reduced heat affected zone, weld in all positions, great for thick-to-thin metal, good gap filling ability and faster travel speeds and deposition.

Auto-Line™ Power Management Technology

Allows for any input voltage hookup (208-575 VAC, single- or three phase) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable input power.

SharpArc®

Controls the arc in Pulsed MIG mode and gives total control over the arc cone shape, puddle fluidity and bead profile.

Advanced features for the professional welder

Adaptive Hot Start™ makes starting stick electrodes easy without creating an inclusion. Infinite arc control available in the Stick and Wire modes for easier fine tuning of tough-to-weld materials and out-of-position applications. Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high frequency.

Standard 14-pin Receptacle

Has the flexibility to be used with spool guns, feeders, and remote controls.

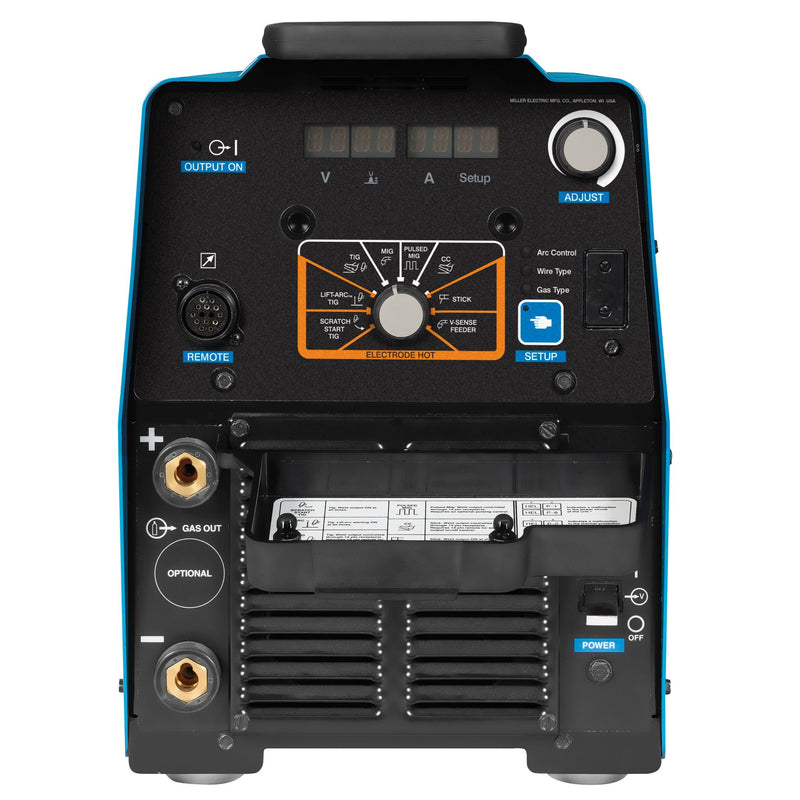

Welder friendly control panel

Process selector switch reduces the number of control setup combinations without reducing any features. Ultra-tough, polycarbonate-blended cover protects front controls from damage. Large, dual digital meters are easy to view and presettable to ease setting weld output.

Output connector choices

Dinse- or Tweco®-style weld cable connectors provide high-quality weld cable connections. (Note: Two Dinse connectors are supplied with each Dinse machine. Tweco connectors must be ordered separately.)

Reliability

Wind Tunnel Technology™ protects internal components, greatly improving reliability. Fan-On-Demand™ cooling system operates only when needed, reducing noise, energy use and amount of contaminants pulled through machine.

Added Features

70 Series MPa wire feeder provides synergic pulsed MIG - as you increase/decrease the wire feed speed, the pulse parameters increase/decrease, matching the right amount of power output to match the wire speed, eliminating the need to make additional adjustments. 70 Series MPa adds wire deposition capabilities with Insight Core™. XR-AlumaFeed™ wire feeder provides Profile Pulse™ - TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

Processes:

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Flux Cored (FCAW)
  • MIG (GMAW)
  • Pulsed MIG
  • Multiprocess
  • Stick (SMAW)
  • TIG DC (GTAW-DC)
