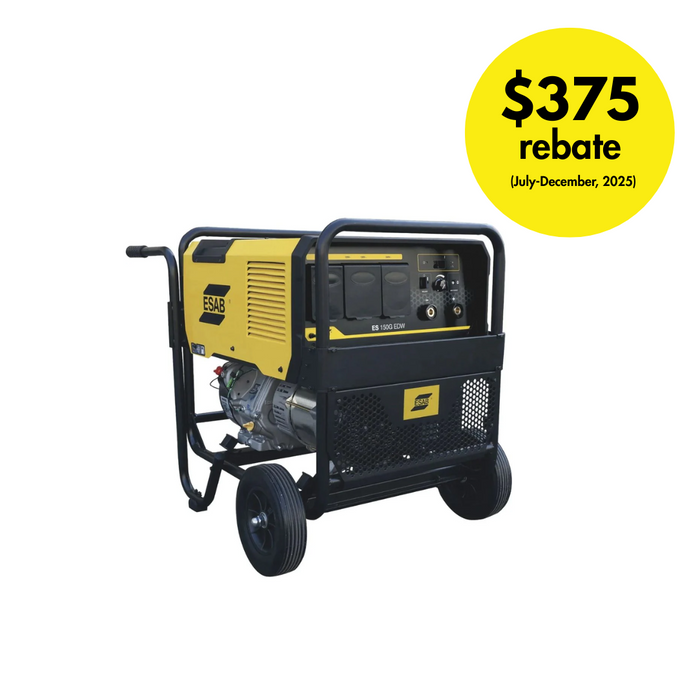

ESAB Ruffian ES 150G Engine Driven Welder

ESAB Ruffian ES 150G EDW

Lightweight, powerful, all-in-one DC Stick welding machine and AC generator combination.

As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler® engine to deliver up to 4.5 kW starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG/TIG welders – and to use as emergency backup.

The weld module of this unit is identical to that of the ESAB Rogue 180i, which means you get a welder that has already stood the test of time.

Main Ruffian Features:

• 150A Welding Output @ 60% Duty Cycle
• Running gear included with convenient lifting handles
• Exceptional performance with cellulosic electrodes (6010)
• Kohler Command PRO CH440 Engine, 5 gal. fuel tank
• 4x 120V, 20A outlets, and 1x 240V, 50A outlet for auxiliary power

High performance welder generator

ESAB’s stick welding DNA plus a premium Kohler engine equals with unrestrained power, job after job.

• Equipped with ESAB's latest DC inverter technology to ensure a smooth, stable welding arc
• Strong welding output of 60% duty cycle at 150 amps
• Reliable 14 HP engine with 5 gallon gas tank offers up to 4,500 watts of peak power all day long
• Accommodates up to 5/32" diameter electrodes of 6010, 6011, and 7018

Wide range compatibility to weld and run tools at the same time.

• Functions as a portable generator at the same time as welding so you can run tools simultaneously without compromising welder performance
• Four 120V outlets and one 240V outlet with covers and circuit breaker protection
• Can be used as emergency backup for household appliances with 4,500W of starting power and 4KW of continuous power

• Versatility to run a variety of tools, including grinders, circular saws, lights, air compressors, and drills – even light-duty welding equipment and plasma cutter

Features an instinctive interface for ultimate control while on the job.

• Adjustable arc force (o to +10) to stabilize the arc and prevent electrodes from sticking
• Convenient, dinse 35 detachable lead connections
• Integrated engine-hour meter to monitor service intervals
• Bright digital display that can be read from far away or in sunlight
• Perfect for old tired eyes!

Ruffian is a full-featured engine driven welder you can take anywhere.

• Ergonomic, removeable handles balance weight while maneuvering
• Industrial-grade wheels with maximum ground clearance
• Protected by IP23S weather-resistant housing and a rugged tubular steel frame
• Will safely operate in rain
• Compact 248 pound package is truck mountable with lift-eye options to go where the work takes you

Technical Data

What's Included

• Ruffian ES 150G EDW Machine
• Handle kit (4 pieces)
• 2x Wheels and axle
• Hardware to mount handles and axle
• ESAB Ruffian Manual, Kohler CH440 Manual

*Electrode holder, ground clamp, cables and connectors not included. Ruffian 150G is equipped with female Dinse 35 (50mm) connectors.

Full Product Data Sheet
