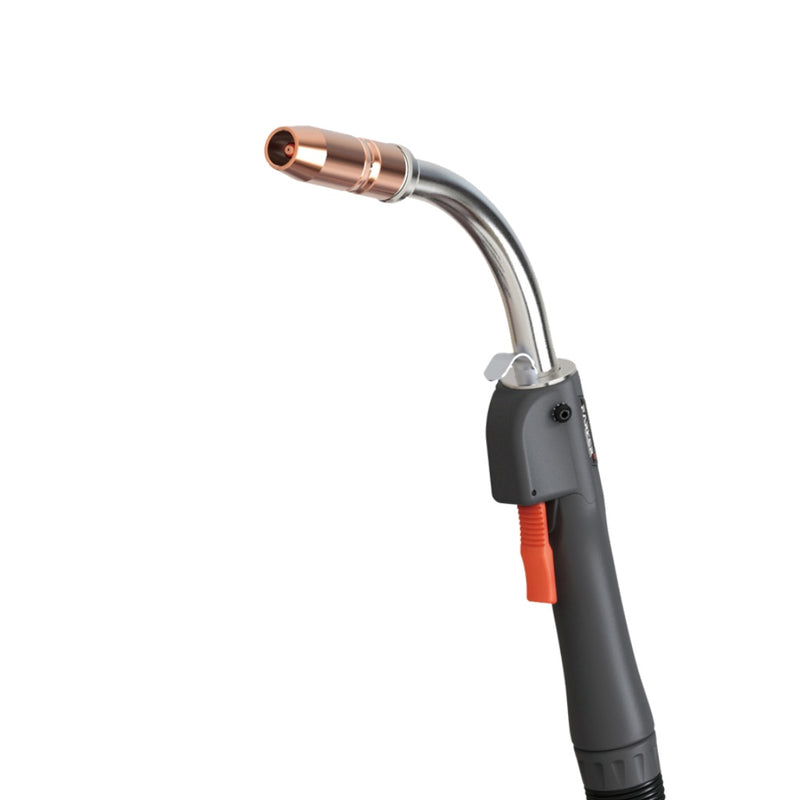

500 Amp Tregaskiss Style MIG Torch

Parker 500 AMP MIG Gun - Tregaskiss Style

A heavy duty 500 Amp capacity air cooled MIG torch that uses Tregaskiss MIG consumables. The TRG Series has been designed inline with the original specification of the Tregaskiss Tough Gun 500 for the harshest of environments. Works with Tregaskiss consumables. Thank goodness the patent expired, because the original of this gun was not cheap!

Can be made to fit all common Lincoln, Miller, and ESAB welders, as well as generic machines with euro connections. If you aren't certain which connection style you need, just send us a message and we will help you out.

Features:

• Air Cooled
• 500A - C02
• 350A - Mixed gas
• Duty Cycle 60%
• 1.0 to 1.6mm / 0.040-1/16" wires
• Liner can be changed to suit needs

Length of Leads Available:

• 15'
• 20'

Machine Connections Available:

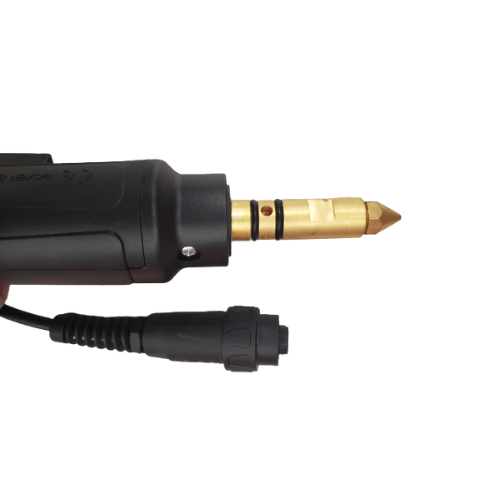

• Miller

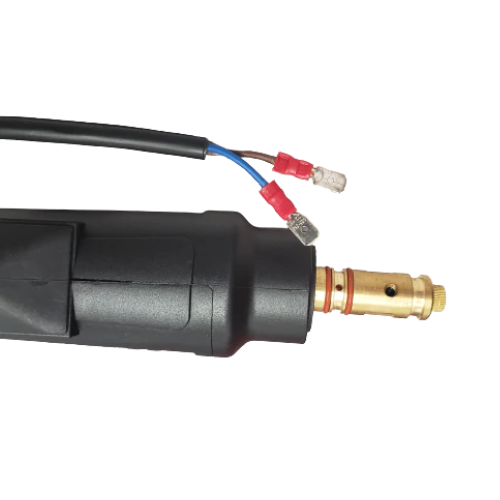

• Tweco (ESAB)
• Euro

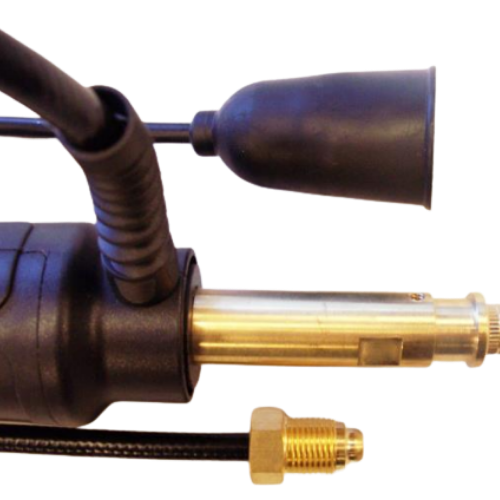

• Lincoln
• Lincoln (LN7, 8, 9, 25)

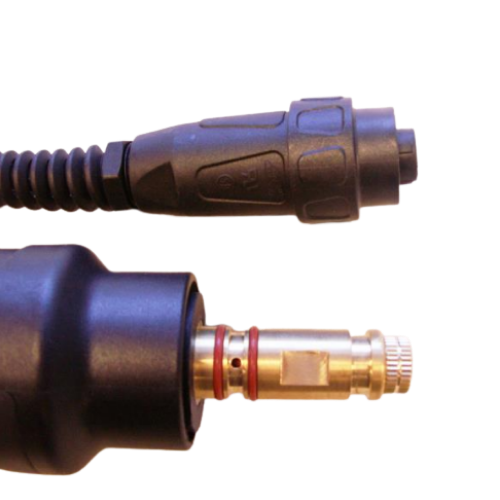

• Lincoln PowerMIG Industrial

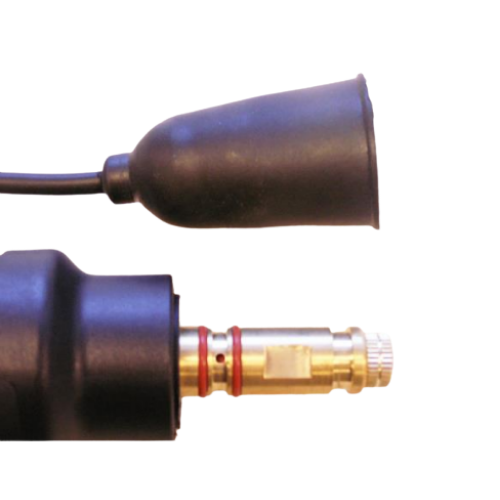

• Lincoln Bell Plug

Download Tech Sheet

MIG Consumables for 500 AMP Tregaskiss Tough Gun:

• 401-5 1/4" Tip Recess MIG Nozzles
• 403-1-xx Heavy Duty Contact Tips
• 404-3 Gas Diffuser

• 402-5 Shock Washer
• Replacement Liners
