Heavy Duty Colored Welding Cable - 250' Roll

Heavy Duty Welding Cable

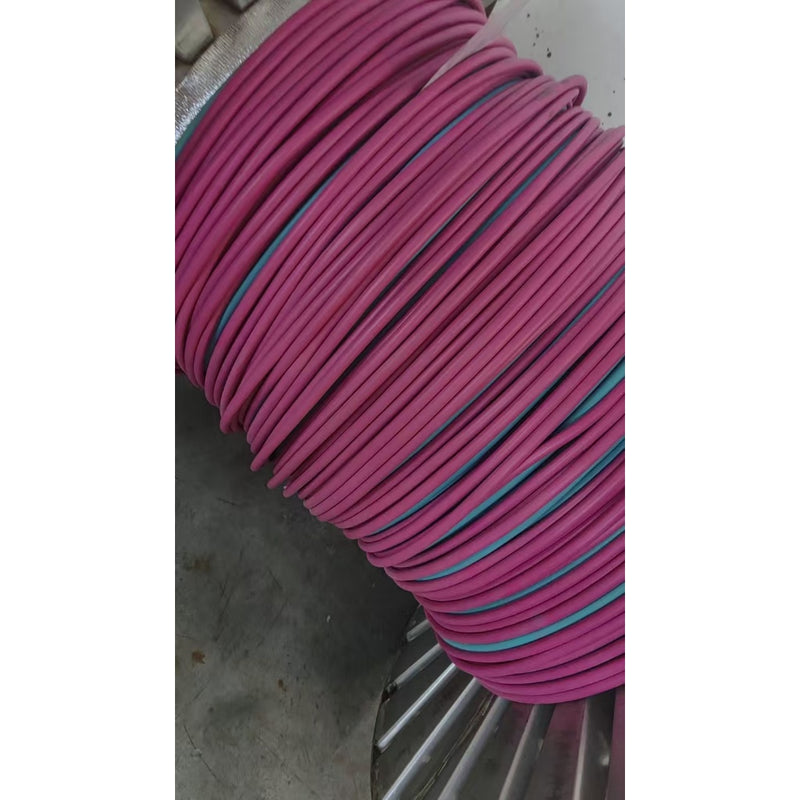

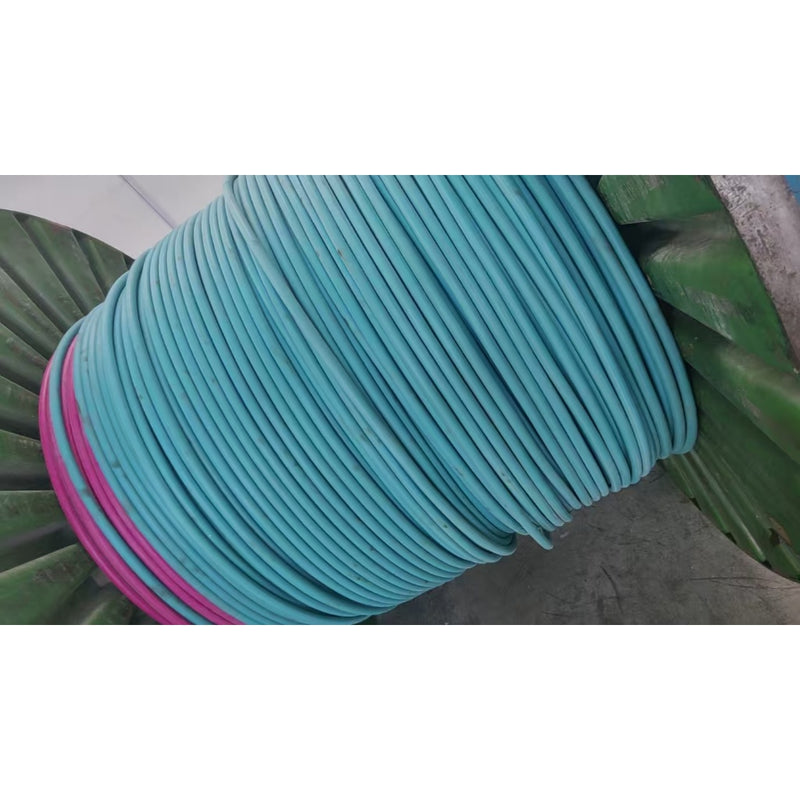

Heavy duty welding cable with thick insulated jackets in a variety of colors. Welding Cable is used for connections between the electrode holder and clamp, to the arc welder, bus, welding box or transformer. Recommended for use in industrial applications such as shipyards, mines and construction sites where resistance to extreme physical abuse are required.

Features:

• Includes numerically labelled cut marks every 1' of cable
• Class K flexible stranded bare copper conductor per ASTM B-172 standard
• Particularly heavy duty construction is highly resistant to flame, oil, grease, solvents, zone, and abrasion
• Available in different colors to easily differentiate between cables

• Paper tape separator between conductor and insulation
• Thermoplastic Ethylene Propylene Rubber (EPR) insulation meets class 45 105°C table 50.55 of UL 1581
• Meets IEC 60245-6
• Rated for 105°C and 600V
• Sold as one continuous 250' length of cable

Options Available:

• #2 AWG Red
• #2 AWG Blue
• #1 AWG Red
• #1 AWG Blue
• 1/0 Red
• 1/0 Blue
• 2/0 Red
• 2/0 Blue
• 3/0 Black
• 4/0 Black
