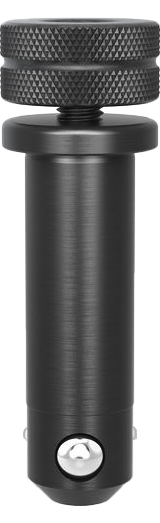

2-280513: Fast Clamping Bolt without Triple Slot (Burnished)
2-280513: Fast Clamping Bolt without Triple Slot (Burnished)
2-280513: Fast Clamping Bolt without Triple Slot (Burnished)
2-280513: Fast Clamping Bolt without Triple Slot (Burnished)

2-280513: Fast Clamping Bolt without Triple Slot (Burnished)

by Siegmund
SKU 2-280513
Sold out
$99.89 - $99.89
$99.89
$99.89 - $99.89
$99.89
Availability:
Out of stock
Request a quote

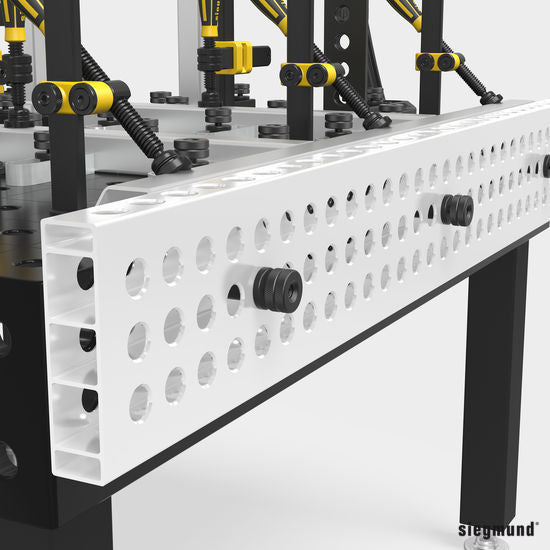

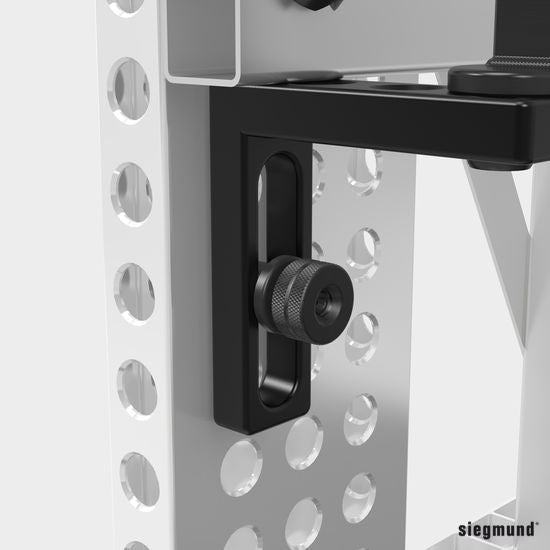

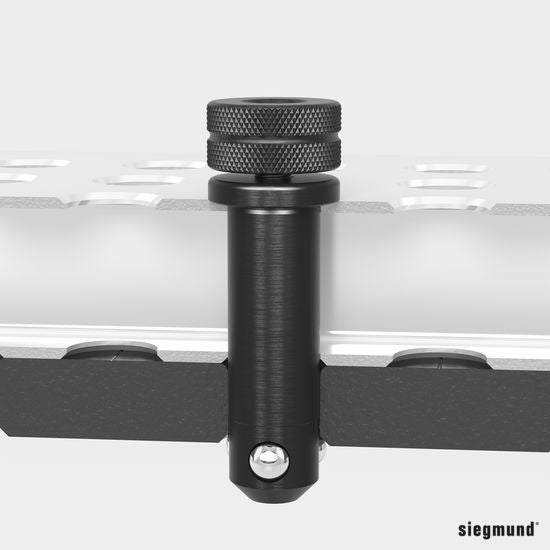

This bolt comes without the slot for O-rings. This ensures a smooth surface of the bolt body. The bolt without slot is particularly suitable for clamping aluminum profiles and is also still compatible with the entire Siegmund range.

The fast clamping bolt with twist-lock is the ideal connecting element between Siegmund components.

Note: This bolt CANNOT be used for connecting tables and U-shaped squares!

Our recommendation when working with aluminum profiles.

Clamping torque dependent on material.

When clamping aluminum parts, the bolts must only be tightened hand-tight.


Specs and Features:
- Item No. 2-280513
- Burnished
- For Clamping 3 Siegmund Components
- With Screw Top
- With Hexagon Socket (Size 6)
- Length: 120 mm (4.72")
- Diameter: 28 mm (1.10")
- Shearing Force: 220 kN
- Tightening Torque Steel: 25 Nm
- Tightening Torque Aluminum: 10 Nm
- Tensile Force: 25 kN
- Weight 1.43 lbs. (0.65kg)
