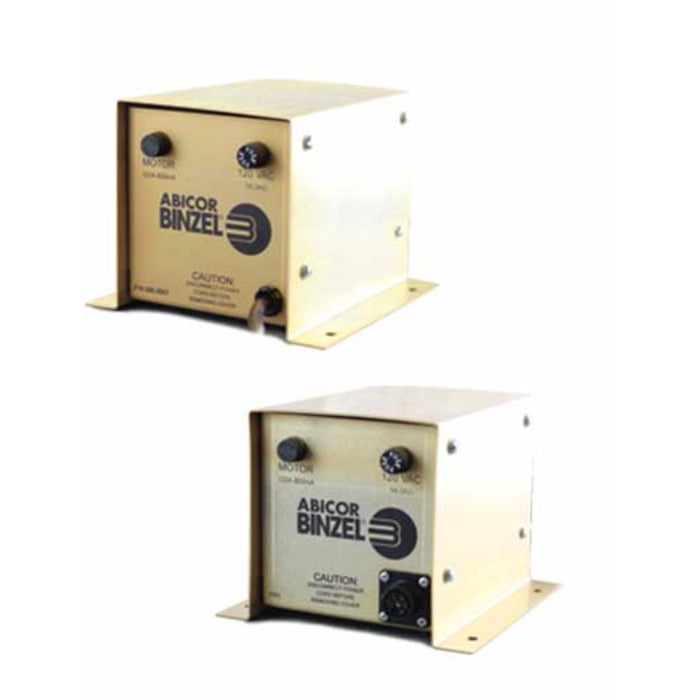

Binzel PPi Universal Push Pull Power Source

Binzel Push Pull Power Source

This magic box allows users to utilize any MIG welder or wire feeder as a push pull set up. Simply connect your Binzel push pull MIG gun into your MIG welder/wire feeder same as a standard gun, connect the control cables to the Binzel universal power supply, and you have a push pull MIG gun for aluminum MIG welding!

How it Works:

• Power for the Binzel Push-pull MIG gun pull motor for select welder machines is obtained from the Binzel Push Pull Universal Power Supply.
• The Push-Pull torch power supply provides torque regulated power to the torch's pull motor, and is compatible with any conventional push wire feeder, as long as crater fill and/or pre-flow gas modes are not selected.
• When the torch motor is switched on via the torch trigger, the torch's pull motor attempts to run at maximum speed.
• The speed of the pull motor is inhibited by the wire speed feed, which is controlled by the main wire drive unit. This results in a tensioning of the wire in the liner, providing smooth and stable feeding.
• The slowing of the pull motor due to the drag effect of the wire results in an increase in current, which is dissipated through a resistor in the form of heat.
• This will provide tension on the wire relative to the speed of the push motor without an overload of the pull motor.
