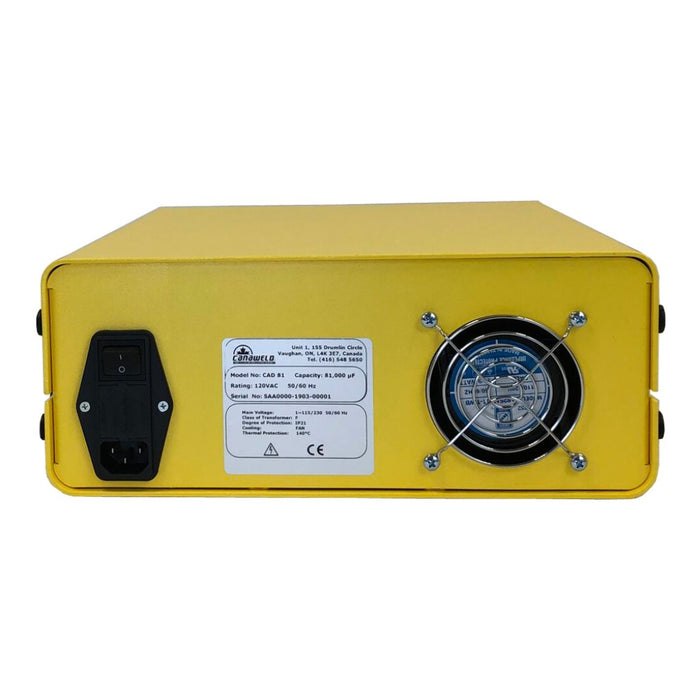

back panel of canaweld stud welder 81
canaweld stud welder 81 front control panel
canaweld stud welder 81 with accessories included
back panel of canaweld stud welder 81

Canaweld Stud Welder - CAD 81

by Canaweld
SKU CWIW81
$3,460.78 - $3,460.78
$3,460.78
$3,460.78 - $3,460.78
$3,460.78
Availability:
In stock
Availability: Ships in 1-2 weeks
Request a quote

Canaweld Stud Welder 81

The Canaweld CAD 81 stud welding system offers a full 5/16-inch (M8) welding capacity and is the most compact system on the market. The CAD 81 is microprocessor controlled and has an improved charging circuit with a high output transformer that maximizes its duty cycle. The system includes enhanced user feedback including safety and fault codes. The CAD 81 is sold as a complete welding system including gun, two ground cables, collets, changing tools and carrying case.



Features:

  • Capacitor Discharge Stud Welding.
  • Weld Range: US Stud Size #4 – 5/16”, Metric Stud Size (M3-M8), Stud diameter 0.112″ – 0.312″
  • Accommodates fasteners up to 3″ Long
  • Input Power 1~115/230, 50/60Hz (internally switchable)
  • 81,000uf Capacitance
  • 25 Pound weight
  • Microprocessor controlled
  • Fully adjustable leg set
  • Enhanced duty cycle
  • Diagnostic LEDs

Included With Purchase:

  • Stud welder CAD 81 power source
  • Hard plastic carrying case
  • C2 Contact gun
  • 2x Ground cable
  • M3 Stud-Chuck
  • M4 (#8) Stud-Chuck
  • M5 (#10) Stud-Chuck
  • M6 (1/4") Stud-Chuck
  • M8 (5/16") Stud-Chuck
  • Collet change tools



Technical Data CAD 81
 Weld Range  M3-M8 diameter fasteners
 Welding Process  Capacitor Discharge, contact or gap
 Capacitance  81,000uf
 Charging Voltage  50-195VDC step less voltage regulation
 Mains Voltage  1~115/230, 50/60Hz (internally switchable)
 Transformer  Type F, thermally protected
 Cooling  Fan
 IP-code  IP 21
 Weight and Dimensions  25lbs. 12” X 5” x 12”
