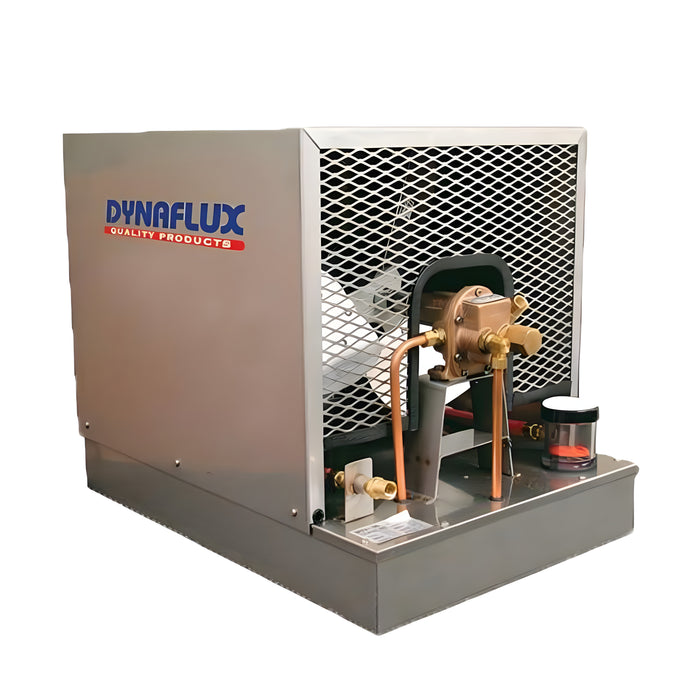

DynaFlux R1100 750 Amp Welding Torch Water Cooler

750 Amp Compact Welding Torch Water Cooler

Narrow but long and tall, high efficiency, made in the USA MIG/TIG torch water cooler. This unit is commonly purchased for automated or other high duty cycle applications that operate at high amperage ranges. Plugs into a standard 115V North American wall outlet.

Cooling Compatibility:

• MIG welding up to 750 amps
• TIG welding up to 750 amps
• Resistance welders up to 75KVA
• Plasma cutters up to 200 amps
• Induction welding up to 5KW

Features:

• Plastic water tank and stainless steel construction eliminates coolant contamination due to electrolysis or chemical reactions.

• All units are plumbed with copper tubing and reinforced hose.
• Water level float gauge and filler cap are combined in a single unit multi-purpose sight glass which enables operator to observe return water at a distance
• Water filter on pump inlet protects pump and extends pump life
• New extended life pump features a direct drive power system reducing maintenance and vibration.
• No external plumbing is required because of closed loop water system.
• Self priming pump
• Easy change pump
• Strong rigid construction designed to support power unit.
• Compact design

• Made in USA

Specifications:

• Factory set at 50 psi adjustable to 80 psi
• 3 gallon reservoir
• 115 or 230 VAC / 1 ph-50/60Hz
• 5.6 / 2.8 amp:60 Hz
• 15,000 BTU
• Dimensions: 23″L x 11″W x 14.75″H
• Net weight: 42 lbs / 19 kg

• Standard 5/8" x 18 LH threads for North American standard TIG torches
• Require use of quick release adapter for use with most water cooled MIG guns

Options Available:

• Rotary GEAR Pump W/ built in by-pass to tank and rebuildable pump
• Rotary VANE Pump

CLICK HERE FOR OFFICIAL SPEC SHEET

This is not a common stock item. Please allow an extra 1-2 week lead time
