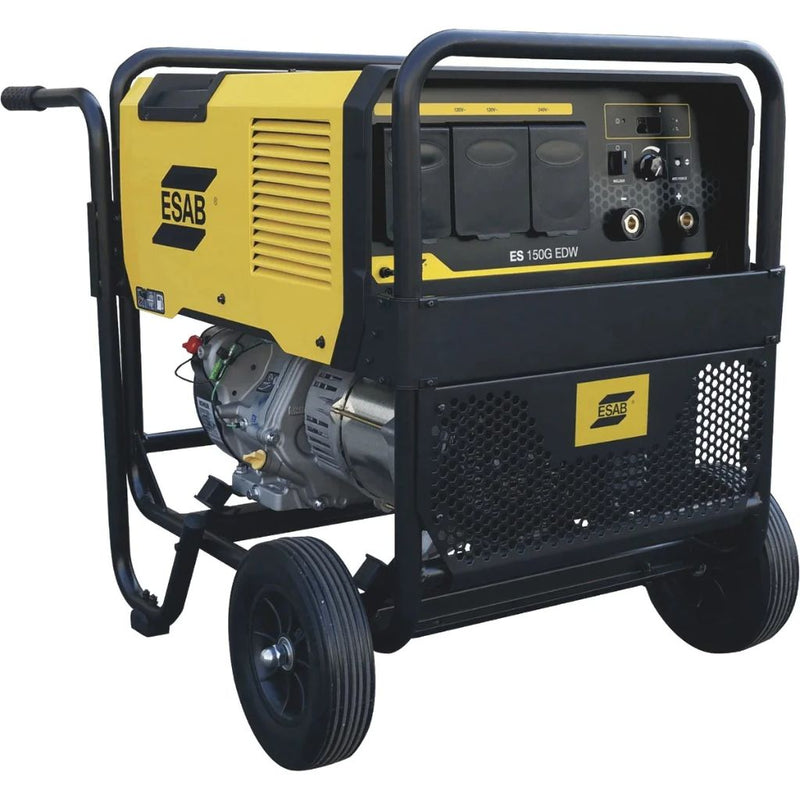

ESAB Ruffian ES 150G Engine Driven Welder

by ESAB
SKU 0707070150
Save 11% Save 11%
Original price $2,785.67
Original price $2,785.67 - Original price $2,785.67
Original price $2,785.67
Current price $2,486.60
$2,486.60 - $2,486.60
Current price $2,486.60
Availability:
In stock

Request a quote

ESAB Ruffian ES 150G EDW

Lightweight, powerful, all-in-one DC Stick welding machine and AC generator combination.

As a welder, Ruffian uses inverter technology to provide up to 150 A of reliable welding power at 60% duty cycle in a very stable arc that helps avoid rework. As an AC generator, Ruffian uses a 14 HP Kohler® engine to deliver up to 4.5 kW starting power. 120 VAC and 240 VAC outlets provide versatility to run lights, grinders, hand tools – even light-duty plasma cutters and MIG/TIG welders – and to use as emergency backup.

The weld module of this unit is identical to that of the ESAB Rogue 180i, which means you get a welder that has already stood the test of time.

Main Ruffian Features:

  • 150A Welding Output @ 60% Duty Cycle
  • Running gear included with convenient lifting handles
  • Exceptional performance with cellulosic electrodes (6010)
  • Kohler Command PRO CH440 Engine, 5 gal. fuel tank
  • 4x 120V, 20A outlets, and 1x 240V, 50A outlet for auxiliary power

High performance welder generator

ESAB’s stick welding DNA plus a premium Kohler engine equals with unrestrained power, job after job.

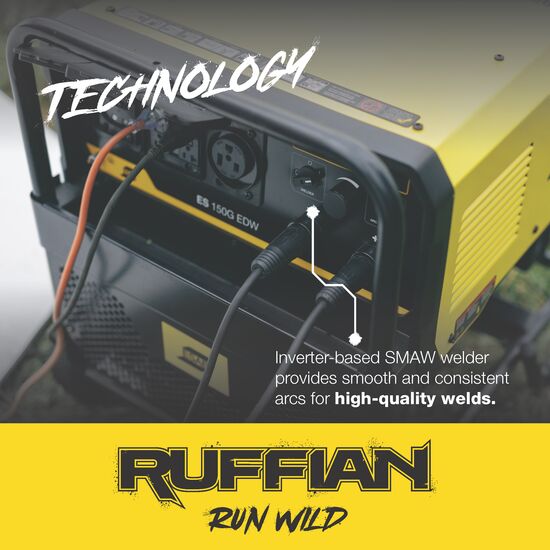

  • Equipped with ESAB's latest DC inverter technology to ensure a smooth, stable welding arc
  • Strong welding output of 60% duty cycle at 150 amps
  • Reliable 14 HP engine with 5 gallon gas tank offers up to 4,500 watts of peak power all day long
  • Accommodates up to 5/32" diameter electrodes of 6010, 6011, and 7018

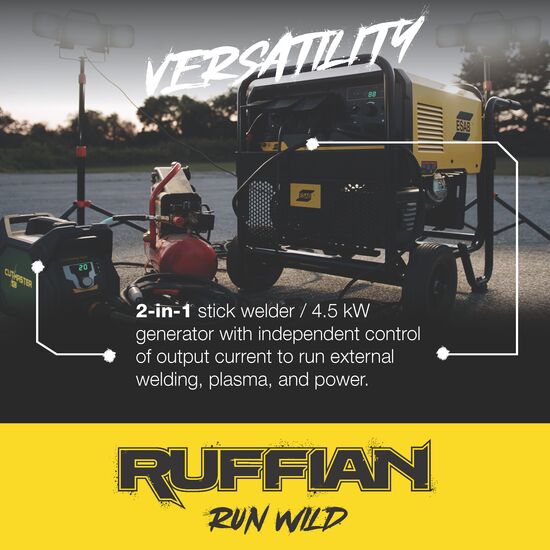

Wide range compatibility to weld and run tools at the same time.

  • Functions as a portable generator at the same time as welding so you can run tools simultaneously without compromising welder performance
  • Four 120V outlets and one 240V outlet with covers and circuit breaker protection
  • Can be used as emergency backup for household appliances with 4,500W of starting power and 4KW of continuous power
  • Versatility to run a variety of tools, including grinders, circular saws, lights, air compressors, and drills – even light-duty welding equipment and plasma cutter

Features an instinctive interface for ultimate control while on the job.

  • Adjustable arc force (o to +10) to stabilize the arc and prevent electrodes from sticking
  • Convenient, dinse 35 detachable lead connections
  • Integrated engine-hour meter to monitor service intervals
  • Bright digital display that can be read from far away or in sunlight
    • Perfect for old tired eyes!

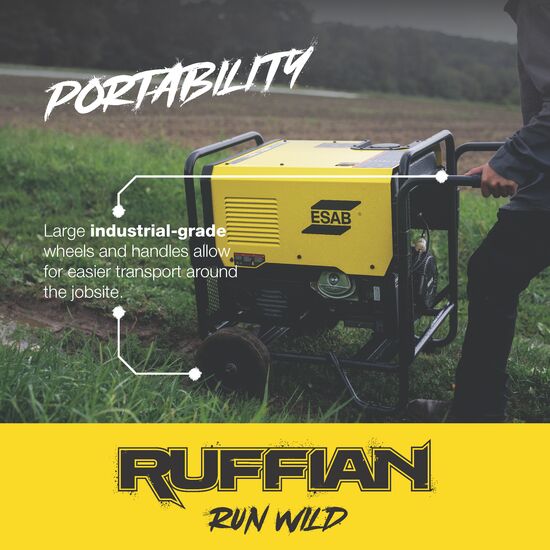

Ruffian is a full-featured engine driven welder you can take anywhere.

  • Ergonomic, removeable handles balance weight while maneuvering
  • Industrial-grade wheels with maximum ground clearance
  • Protected by IP23S weather-resistant housing and a rugged tubular steel frame
    • Will safely operate in rain
  • Compact 248 pound package is truck mountable with lift-eye options to go where the work takes you

Technical Data

Product Name // Part Number ESAB Ruffian ES 150G EDW // 0707070150
Welding Process Stick (SMAW)
Rated Duty Cycle 150A, 26V @ 60%
115A, 24.6 @ 100%
Welding Output Range 20A - 150A DC, 78V OCV
Engine Type 14HP Kohler CH440, Gasoline
Generator Power (Peak/Cont.) 4,500W Peak
4,000W Continuous
Engine Start Type Pull start only
Auxiliary Power Outlets 4x 120V 15/20A
1x 240V 50A
Auxiliary Power (Max.) 120V: 34A
240V: 17A
Dimensions L x W x H
 - Without Wheels and Handles:
 - With Wheels and Handles:


28.70 x 22.52 x 25.98 in
40.83 x 28.74 x 31.61 in

Weight (Empty Weight, No Gas)
 - Without Wheels and Handles:
 - With Wheels and Handles:

223.8 lb (101.5 kg)
248.0 lb (112.5 kg)
Warranty 3-Year ESAB: Welder/Generator
3-Year Kohler: Engine


What's Included

  • Ruffian ES 150G EDW Machine
  • Handle kit (4 pieces)
  • 2x Wheels and axle
  • Hardware to mount handles and axle
  • ESAB Ruffian Manual, Kohler CH440 Manual

*Electrode holder, ground clamp, cables and connectors not included. Ruffian 150G is equipped with female Dinse 35 (50mm) connectors.

Full Product Data Sheet
