esab 7018 stick electrodes

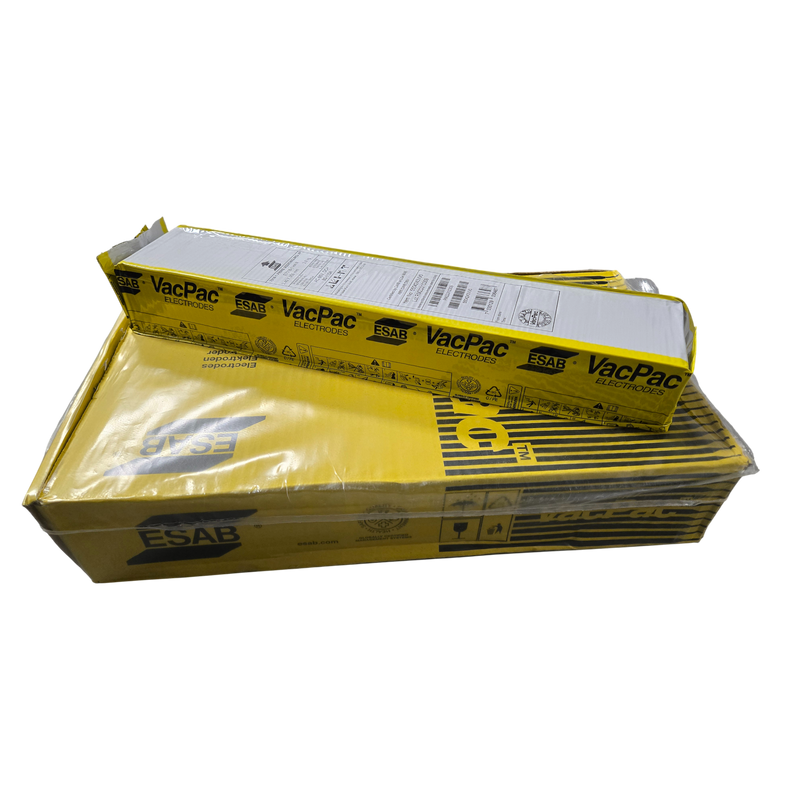

ESAB Weld 7018-1 General Purpose Stick Electrodes

by ESAB
SKU 3776253500 (13.5kg Box)
$109.41 - $5,506.77
$109.41
$109.41 - $5,506.77
$109.41
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Option: 3/32" (2.5mm) x 14" - 30 lbs (13.5kg) - 3776253500
Request a quote

ESAB Weld 7018-1 Electrodes

Weld 7018-1 is a general - purpose basic DC + low Hydrogen electrode. Excellent for general purpose welding. Good impact values down to -45°C. If you do a bit of everything, but still want a high quality stick electrode, this is the rod for you.

Specifications
Classifications SFA/AWS A5.1 : E7018-1H4
CSA W48 : E4918-1-H4
Approvals CWB : E4918-1-H4

Approvals are based on factory location. Please contact ESAB for more information.

Welding Current DC+, AC
Diffusible Hydrogen < 4.0 ml/100g
Alloy Type Carbon Manganese
Coating Type Basic covering
Min AC OCV 65

Typical Tensile Properties
Conditional Statement Yield Strength Tensile Strength Elongation
AWS
As welded > 400 MPa ( > 58 ksi ) > 490 MPa ( > 71 ksi ) 22 %



Typical Charpy V-Notch Properties
Testing Temperature Impact Value
AWS
-45 °C ( -49 °F ) > 27 J ( > 20 ft-lb )
Typical Weld Metal Analysis %
C Mn Si
0.06 1.5 0.5
Deposition Data
Diameter Current Voltage kg weld metal/kg electrodes Number of electrodes/kg weld metal Burn-off Time/Electrode Deposition Rate
2.5 x 350 mm
( 3/32 x 14 in. )		 80-110 A 23 V 0.64 66 64 sec 0.9 kg/h
( 2.0 lbs/h )
3.2 x 350 mm
( 1/8 x 14 in. )		 110-140 A 23 V 0.62 41 72 sec 1.2 kg/h
( 2.6 lbs/h )
4.0 x 450 mm
( 5/32 x 18 in. )		 140-200 A 24 V 0.71 19 94 sec 2.0 kg/h
( 4.4 lbs/h )
5.0 x 450 mm
( 3/16 x 18 in. )		 200-270 A 24 V 0.72 13 94 sec 3.0 kg/h
( 6.6 lbs/h )


Options Available:

  • 3/32" (2.5mm) x 14" - 30 lbs (13.5kg)  - 3776253500
  • 1/8" (3.2mm) x 14" - 32 lbs (14.4kg) - 3776323500
  • 5/32" (4.0mm) x 18" - 41 lbs (18.6kg) - 3776404500
  • 3/32" (2.5mm) x 14" - 1960lbs (891kg) skid  - 3776253500
  • 1/8" (3.2mm) x 14" - 2090lbs (950.4kg) skid- 3776323500

CLICK HERE FOR OFFICIAL SPECIFICATION SHEET
