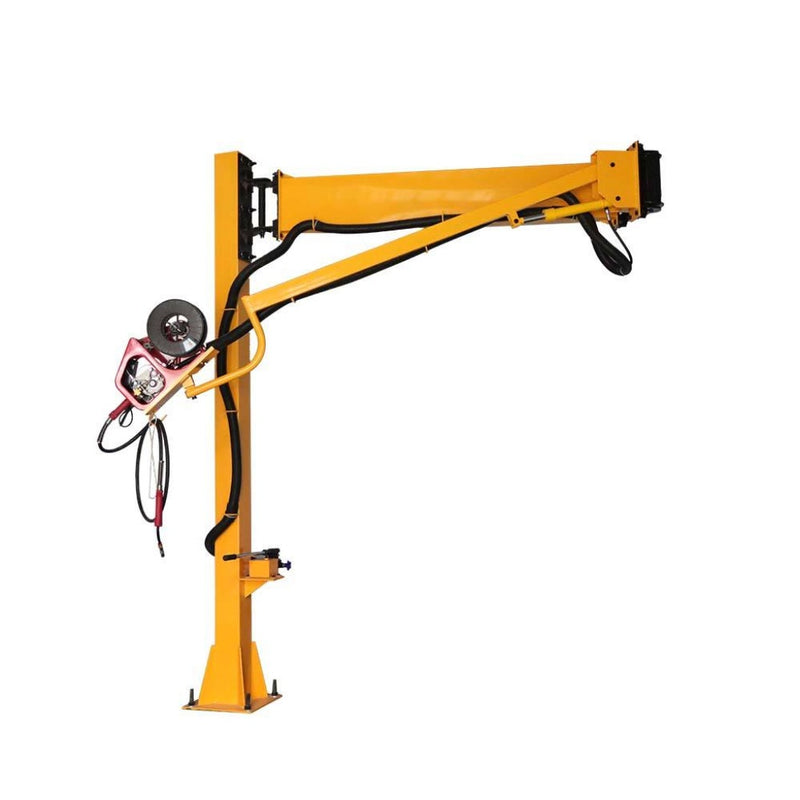

Floor mounted hydraulic welding boom with elbow joint bent

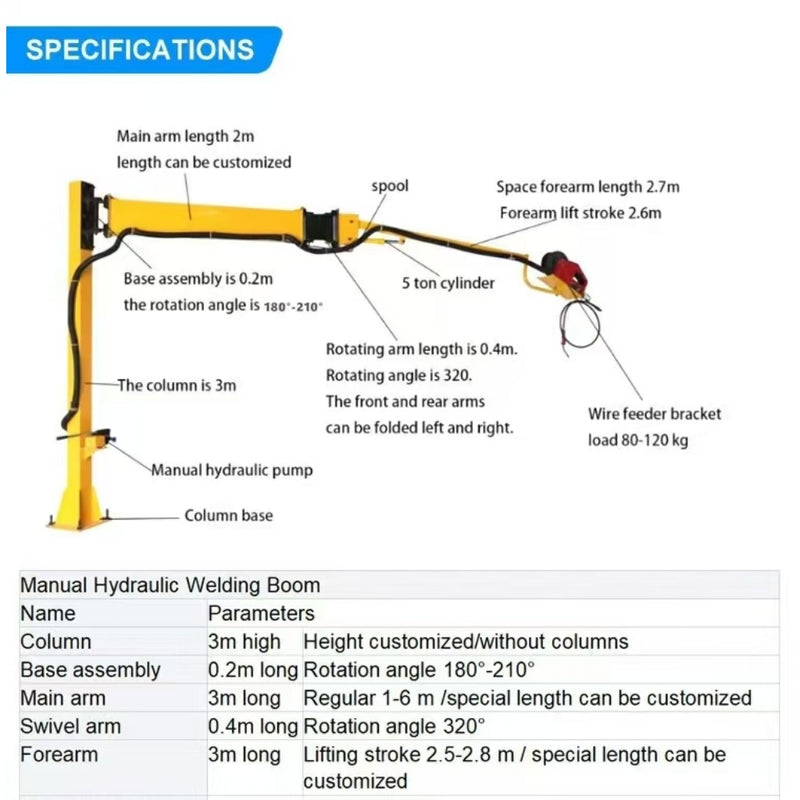

Diagram of size of floor mounted wire feeder boom with single mig wire feeder

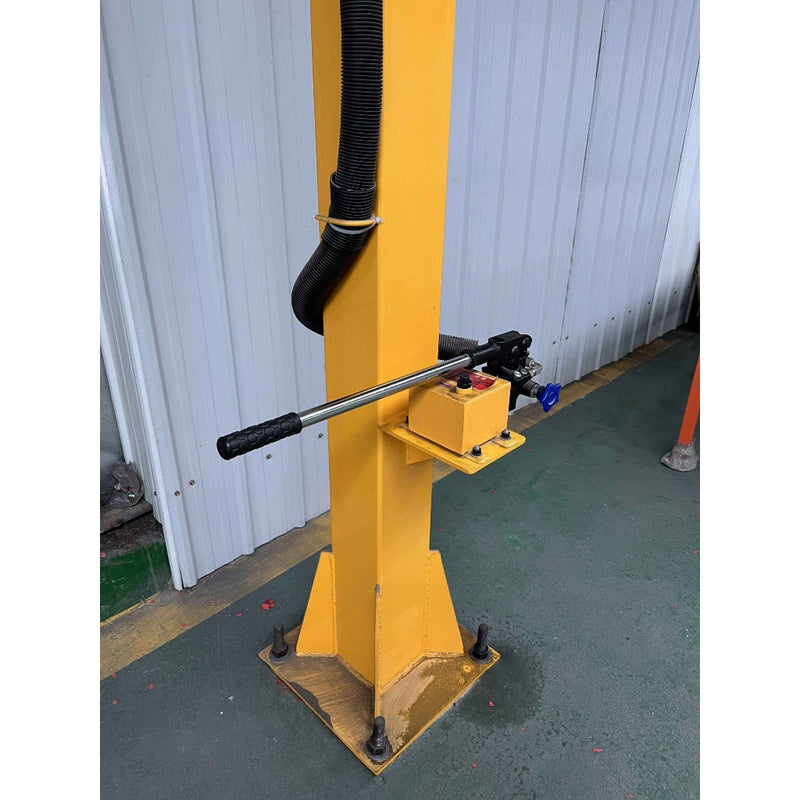

manual hydraulic pump of mig wire feeder boom

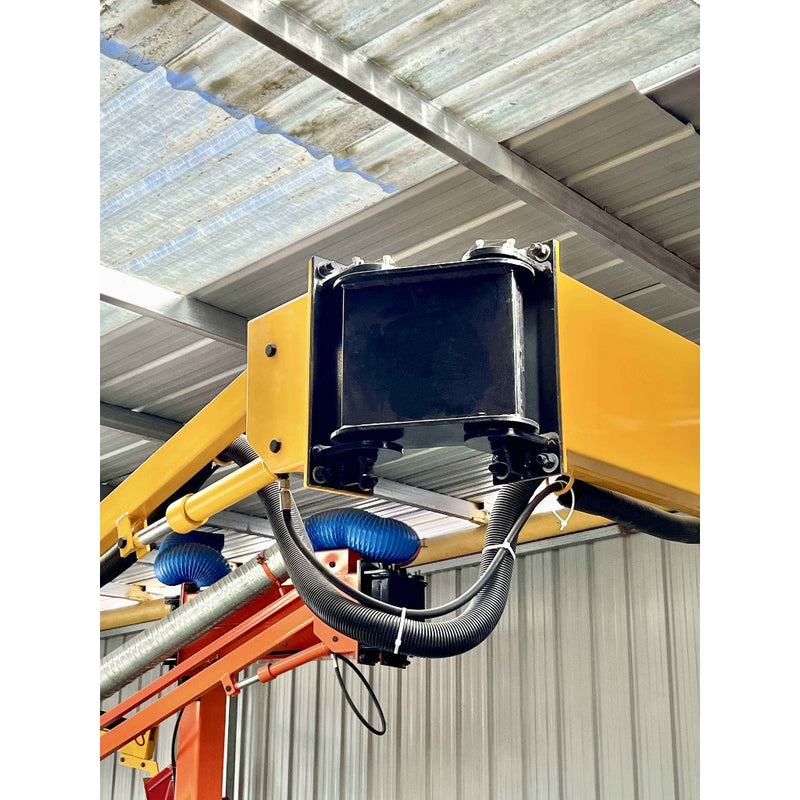

elbow joint of hydraulic mig wire feeder boom
Floor mounted hydraulic welding boom with elbow joint bent
Diagram of size of floor mounted wire feeder boom with single mig wire feeder
manual hydraulic pump of mig wire feeder boom
elbow joint of hydraulic mig wire feeder boom

Floor Mounted Pivot Joint Hydraulic Wire Feeder Boom

by Weldready
SKU CBOOM605
$7,765.37 - $7,765.37
$7,765.37
$7,765.37 - $7,765.37
$7,765.37
Availability:
Only 1 left!
Request a quote

Floor Mounted Pivot Joint MIG Wire Feeder Boom

Long Reach wire feeder boom for welding station. Reaches up to 20' in fully extended position. Manual hydraulic pump allows feeder to move up and down as needed. Platform is large enough to accommodate Miller dual wire feeder.

This is the perfect welding boom for designing a weld cell when there is no column available for mounting.

Dimensions shown are for standard size, can be manufactured custom to order.

Features:

  • Main column mounts to floor
  • Main arm swivels 180°
  • Secondary arm swivels 320°
  • Column is 3 meters/10' tall
  • Arm reaches 6 meters/20' when fully extended
  • Includes manual hydraulic pump for raising and lowering secondary arm
