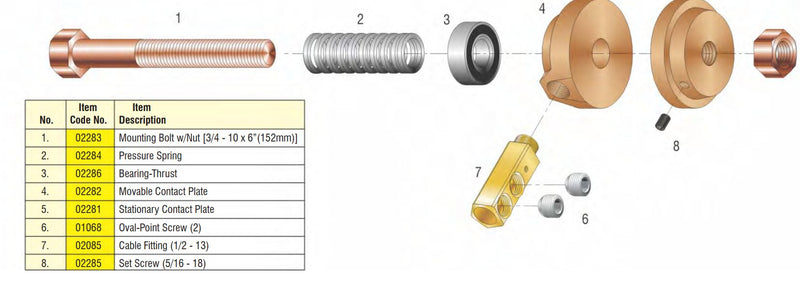

parts diagram of lenco model c rotary ground lcamp
lenco model c ground clamp 500 amp copper and brass
cad drawing of lenco model c rotary ground clamp
parts diagram of lenco model c rotary ground lcamp

Lenco Model C Rotary Ground Clamp - 500 Amp Capacity

by Lenco
SKU L02080
$210.16 - $210.16
$210.16
$210.16 - $210.16
$210.16
Availability:
In stock
Availability: Ships in 1-2 weeks
Request a quote

500 Amp Rotary Welding Ground Clamp

The Lenco model C rotary clamp bolts the stationary contact plate directly to the work. The movable contact plate revolves like a "ferris wheel action" and the spring keeps tension on the two faces. Current flow is between machined faces. Cables will not bind. The model C can also be installed on the end for rotary work.

Features:

  • 500 Amp capacity
  • Individually replaceable sub components
  • High quality, made in USA
  • Two oval point screws with cover for cable connection
  • 3/0 - 4/0 Cable capacity
  • 3/4"-10 Bolt on clamp
  • 3.5 Pound weight
