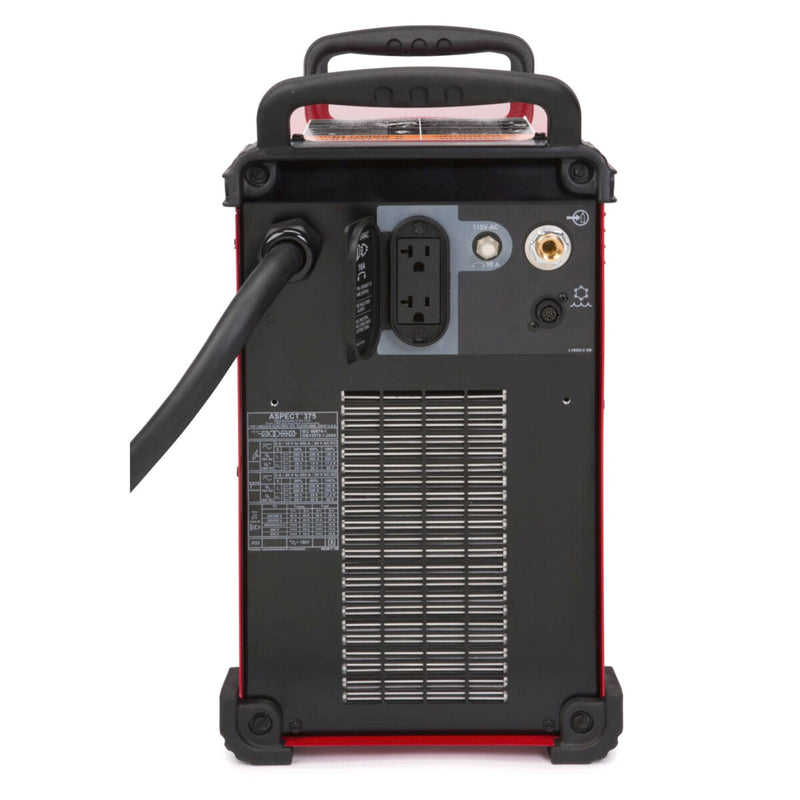

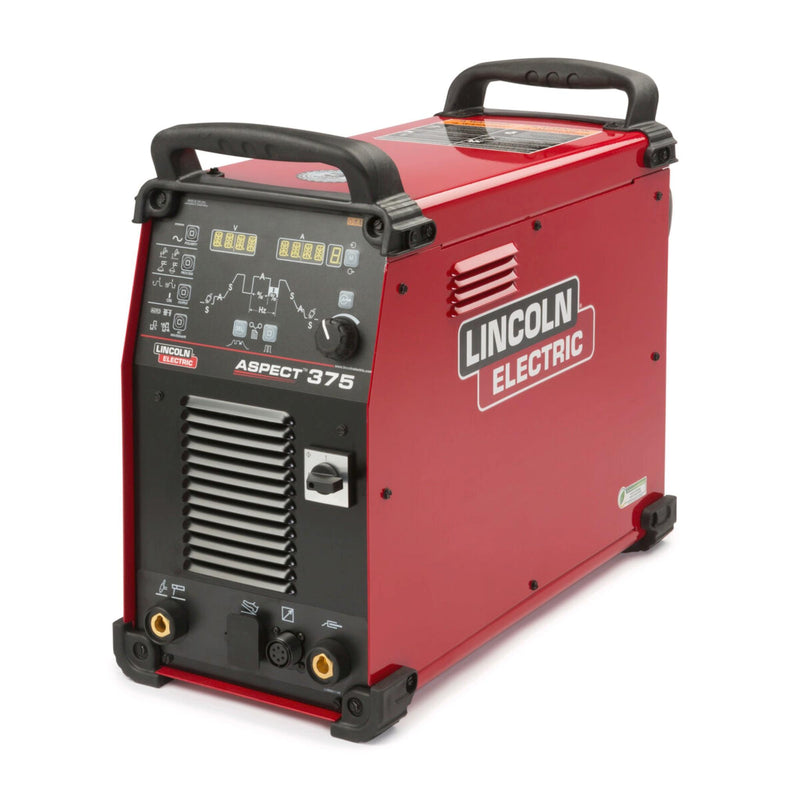

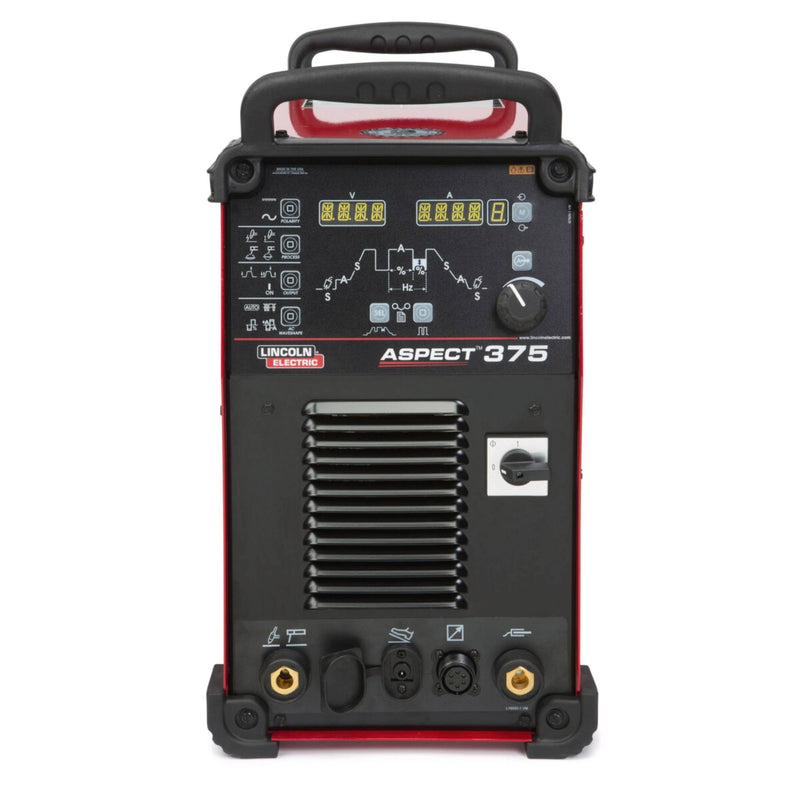

Lincoln Electric® Aspect® 375 AC/DC TIG Welder Ready-Pak®

SKU K3946-2
Original price $19,261.56 - Original price $19,261.56
Original price
$19,261.56
$19,261.56 - $19,261.56
Current price $19,261.56
Availability:
In stock
Availability: Ships in 1-2 weeks
Request a quote

Aspect® 375 AC/DC TIG Welder Ready-Pak®

ADVANCED TECHNOLOGY MADE SIMPLE. A quality weld is always important. Choose a TIG welding machine that meets the demanding quality standards of the aerospace, motorsports, shipbuilding, education and fabrication industries. The Aspect® 375 is the perfect choice for mission critical welds, especially on applications that must stand up to the most rigorous testing requirements.

Features:

  • Effortless arc control: Extremely fast arc response and stability for the smoothest and most efficient weld possible.
  • Activate Intellistart™ technology to automatically provide for softer starts and minimal distortion on thinner materials and hotter starts required for thicker materials.
  • Optional AC Auto Balance® technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.
  • Customization when you need it: AC Wave Shape control enables you to customize the arc for critical aluminum welding requiring: a higher degree of penetration on thicker materials, increased cleaning action in breaking through heavy oxide layers, or narrower arc profile enhancing control around corners and other tight configurations.

What's Included:

  • (1) Aspect 375 AC/DC TIG Welder
  • (1) 10 ft. (3 m) Input Power Cord
  • CONNECTOR | 9ST14557-27
  • Caliber® 17/18/26 Series TIG Torch Expendables Kit - 1/16"-1/8" | KP4760-HD
  • Caliber® 18 Series TIG Torch - Flexible, 25 ft. (7.6 m) | K4843-18F-2
  • Cool Arc® 47 TIG Torch Cooler - Aspect® 375 | K3950-1
  • Aspect® 375 TIG Welder Cart | K3949-1
  • One Gallon of Low Conductivity Coolant | KP4159-1
  • TIG Adapter Kit - Twist Mate™ Adapter Assembly | K1622-5
  • Zippered Cable Cover - 22 ft (6.7 m) | K918-2
  • Weld Cable Package - Work Lead - TM & GC500 Ground Clamp (2/0, 350A, 60%) - 15 ft. (4.6 m) | K1803-3
  • Foot Amptrol™ - 25 ft (7.6m) (6 pin) | K870
  • Model 355-2Ar-58010 Flowmeter Regulator Shielding Gas Kit | 3100211
  • 3 year warranty

Application:

  • Automotive; Brewery; General Fabrication; Maintenance & Repair; Marine Applications; Marine Fabrication & Repair; Pharmaceutical Equipment; Repair Welding; Shipbuilding

Specification:

Input Voltage 200-600
Input Current 3 Phase: 60% Duty Cycle: 29/26/15/12/10, 40% Duty Cycle 27/24/14/11/9 1 Phase: 60% Duty Cycle: 34/31/NA/NA/NA, 40% Duty Cycle: 32/29/NA/NA/NA
Input Hertz 50/60
Input Phase 1/3
Input Power 200-600/1/3/50/60
Mode Icon CC
Output Range 3 Phase: 2-375A, 1 Phase: 2-250A
Polarity AC/DC
Dimensions (H x W x D) 47 in x 23 in x 45 in (1194 mm x 584 mm x 1143 mm)
Net Weight 235 lbs (106.596 kg)
