Long & Flat Fast Clamping Bolt (Burnished) - Weldready

Long & Flat Fast Clamping Bolt (Burnished)

by Siegmund
SKU 2-160523
Sold out
$0
$63.26 - $63.26
$63.26
$63.26 - $63.26
$63.26
Availability:
Out of stock
Request a quote

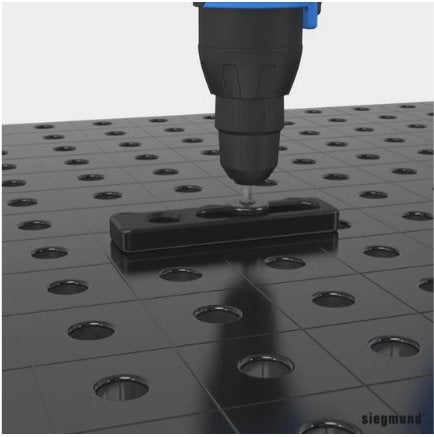

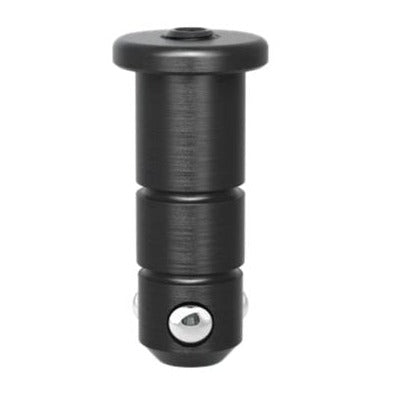

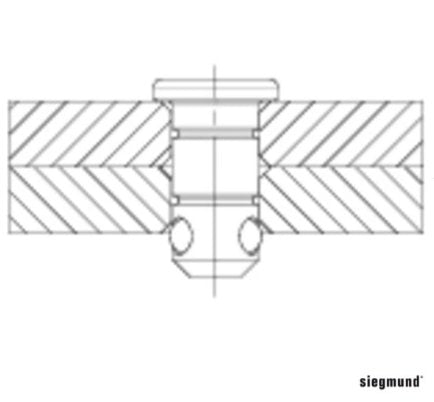

The Siegmund Long & Flat Burnished Fast Clamping Bolt is mainly used for clamping of oblong holes. Like the countersunk bolt, it reduces protrusion.

Ideal for cordless screwdriver with up to 10 Nm turning moment.

NOTE: This Bolt is NOT approved for combining tables and U-shaped squares!

Specs and Features:
- Item No. 2-160523
- Burnished
- For Clamping 3 Siegmund Components
- Length: 48mm (1.88'')
- Diameter: 16mm (0.62'')
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.17 Ibs.
