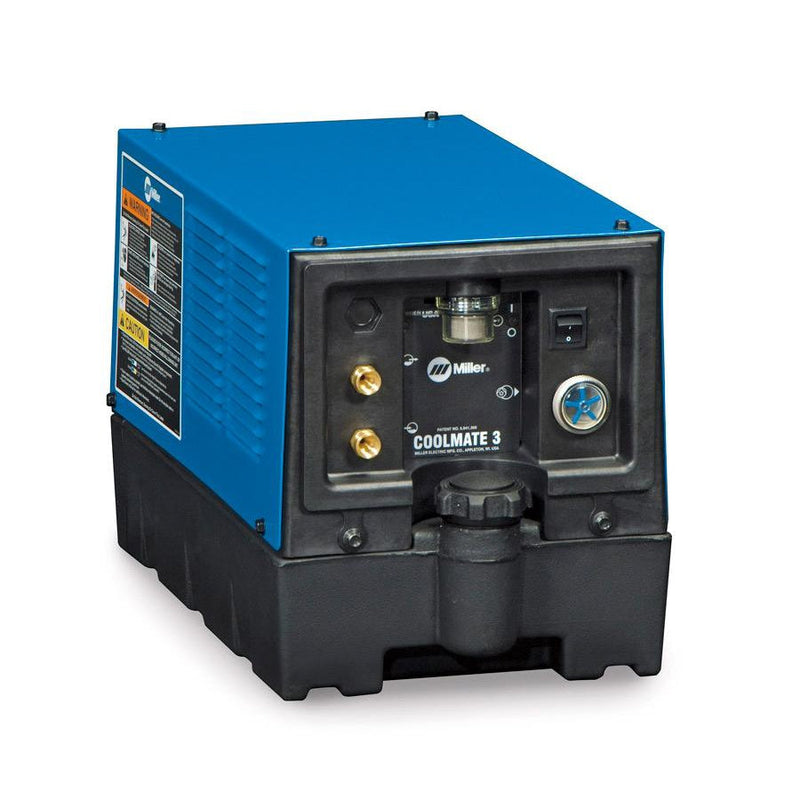

Miller Coolmate 3 Water Cooler

Miller Coolmate 3 Coolant System is designed for use with water-cooled torches rated up to 600amps. Unique paddle-wheel indicator, external filter and easy fill spout.

  • Designed and built to work with your water-cooled application and equipment. Features a closed-loop design with a radiator to reduce coolant temperatures an prevent overheating. TIG, MIG, resistance welding, or plasma cooling.
  • Economical, 3-gallon cooler designed for water-cooled torches rated up to 500 A

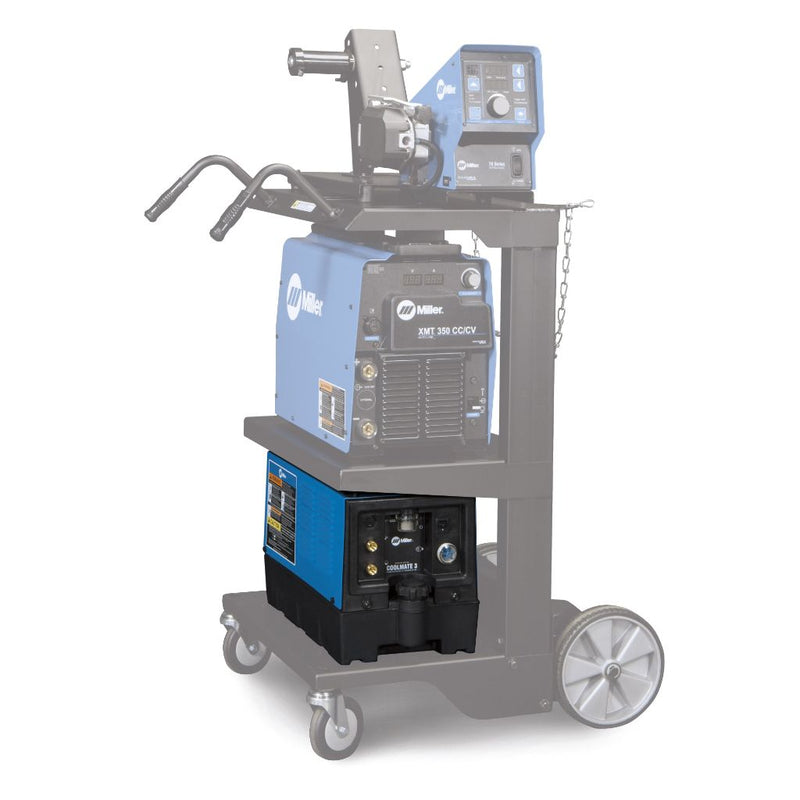

  • Compact horizontal design allows stacking and convenient mounting
  • Midsize cooler Weighs 40 lb (18 kg) dry
  • On/off power switch, "paddle wheel" coolant flow indicator, filter and coolant filling spout are all conveniently located on front panel.
  • Polyethylene-molded coolant tank, fan shroud and filler spout are rustproof.
  • Factory-set pressure relief valve (55 PSI) maintains consistent pressure during operation.
  • Thermally protected 1/4 HP motor guards against overheating.
  • Efficient fin and tube heat exchanger
  • Brass-body, positive displacement rotary vane pump provides consistent coolant flow and pressure rating with long pump-life expectancy.

Specifications

Click to view the entire spec sheet.

Miller Coolmate 1.3 Coolant System 300972 Specs and Data Sheet
