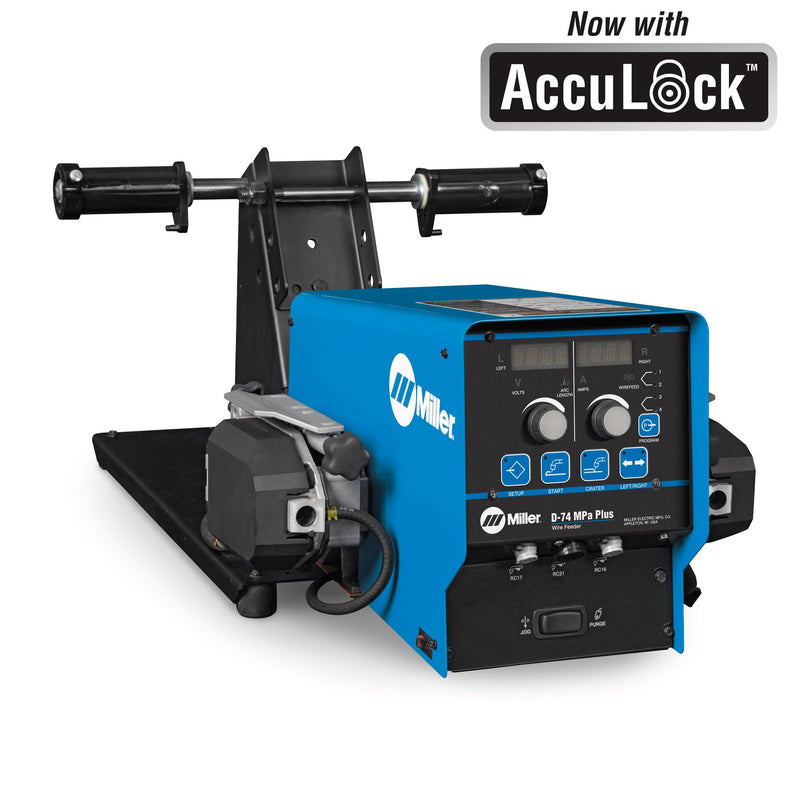

Miller D-74 MPa Plus Dual Wire Feeder

Miller D-74 MPa Plus Dual Wire Feeder and Bernard MIG Guns - 951292001

by Miller Electric
SKU MIL951292001
Save 13% Save 13%
$10,207.66
$10,207.66 - $10,207.66
$10,207.66
$8,839.03
$8,839.03 - $8,839.03
$8,839.03
Availability:
In stock
Request a quote

Miller D-74MPa Pulsed Wire Feeder

High quality, four wheel drive, dual feed wire feeder for use with pulsed MIG. Expanded capabilities from 74D, adds push-pull aluminum capabilities. Optimized with Invision™ MPa or XMT® MPa power sources.

Features:

Trigger Schedule Select

Save time when switching between two weld settings by simply tapping gun trigger.

Accu-Mate™

Properly seats the MIG gun power pin for best feeding performance.

Alumination™

Gives you the ability to use the extended reach of a push-pull system for consistent, versatile and dependable aluminum wire feeding.

Digital Meters

Ensure accuracy when presetting and reading actual voltage, amperage and wire feed speed.

Remote Voltage Control

Allows you to set both voltage and wire feed speed at the feeder, saving time and increasing weld quality because optimal weld parameters are easy to set.

Complete Your System

Dedicated XR™-Pistol Plus and XR-Aluma-Pro™ Plus guns work with this feeder to coordinate wire feed speed of the gun and the feeder. This provides optimized aluminum feeding and welding performance.

Additional features when used with Invision MPa or XMT MPa power sources

Synergic Pulsed MIG. As wire speed increases/decreases, pulse parameters also increase/decrease to match the right amount of power needed, eliminating the need to make additional adjustments. Profile Pulse™ provides TIG appearance with MIG simplicity and productivity. Achieve “stacked dimes” without gun manipulation. Profile Pulse frequency can be changed to increase or decrease the spacing between the ripple pattern to achieve the desired weld appearance.

Remote Configurations

Remote wire feeder control boxes and wire drive assemblies are available for non-Miller boom applications.

AccuLock S Consumables

AccuLock can transform the way businesses manage their MIG welding gun consumables – helping to optimize productivity, operating costs, and welder confidence. Less tip changes, less troubleshooting, and more beads worth bragging about!

What's Included:

  • D-74 MPa Plus Dual Feeder
  • 2x Bernard BTB 400A MIG guns
  • .035-.045 Reversible dual V drive rolls - 2 sets

CLICK HERE FOR OFFICIAL SPECIFICATION SHEET
