Miller Pipeworx Specialized Pipe Welder

Simplified and optimized for pipe fabrication shop welding, the PipeWorx systems streamlined set-up with one touch welding, quick process changeover, and Pulsed and Modified Short-Arc MIG processes, makes training and turn-around times faster than ever before.



Simple Process Setup

  • Clearly labeled controls in easy-to-understand welder terminology.
  • Requires just a few basic steps to set up a new weld process, resulting in less training time and minimizing errors from incorrect setups.

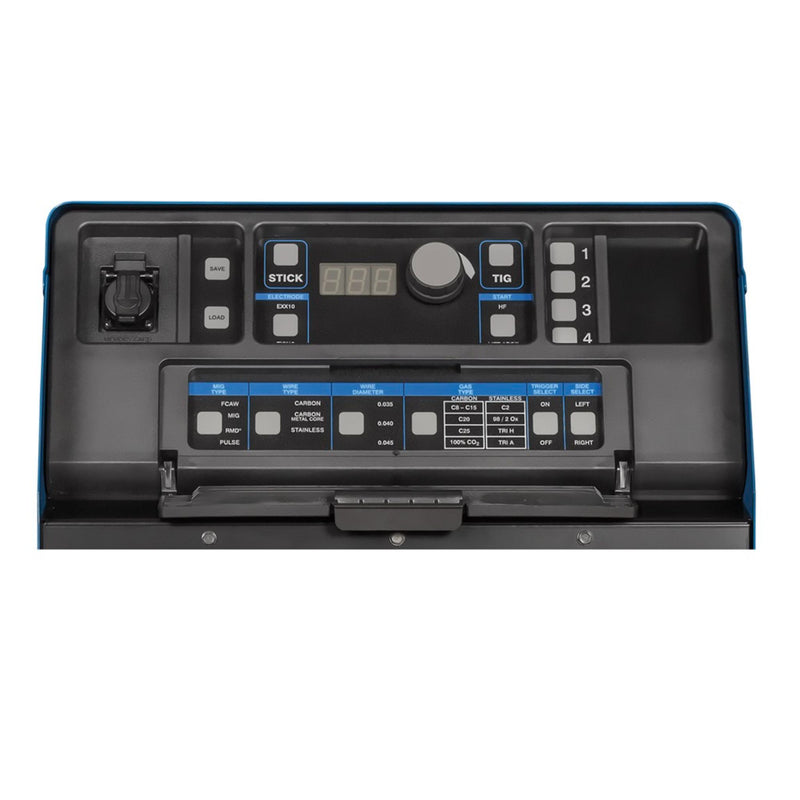

  • The front panel was designed by welders for welders. Only backlit controls are adjustable to eliminate confusion.

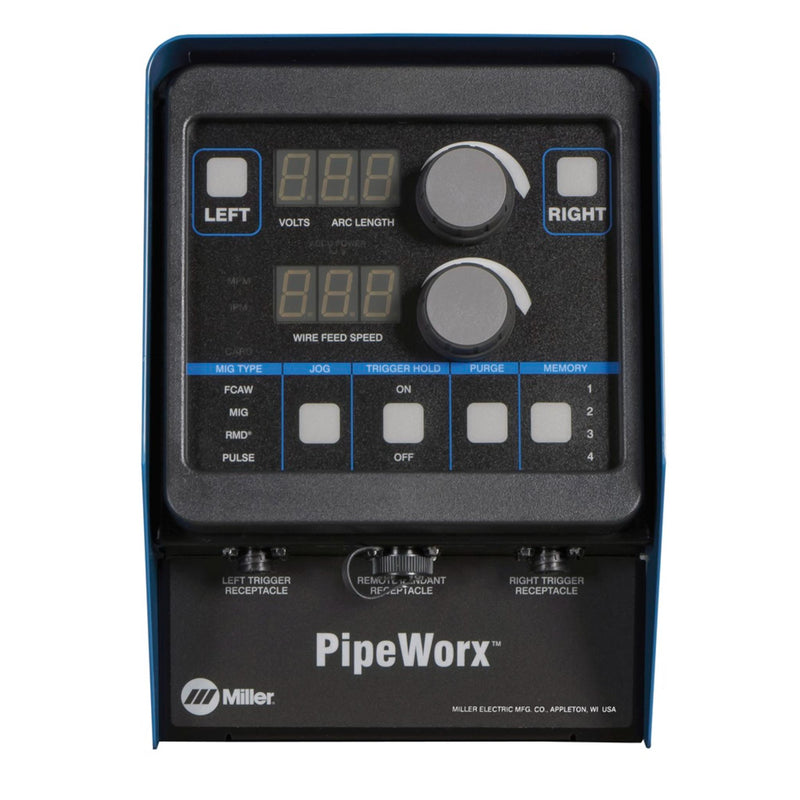

  • Memory feature stores four programs for each selection: Stick, DC TIG, and MIG (left and right side of feeder). Beneficial when using multiple procedures, multiple process parameters or multiple welders and eliminates the need to remember parameters.

Multiprocess Machine

  • Weld processes are optimized to deliver superior arc performance and stability specifically for root pass, fill and cap pipe welding.
  • Includes conventional Stick, DC TIG (Lift-ARC™ or HF Start), Flux-Cored and MIG welding processes.
  • Also features the advanced RMD® and Pulsed MIG processes that deliver superior quality welds, increase productivity, and reduce rework and training.

Quick Process Changeover

  • No need to manually switch polarity or cables and hoses between processes. Simply push a process selection button to choose a welding process. PipeWorx 'Quick-Select' technology automatically selects the welding process, the correct polarity, cable outputs and welding parameter.
  • Quick process changeover eliminates set-up time for switching cables and gas hoses. Also, reduces the risk of weld reworks due to incorrect cable connection.

Streamlined System

  • Wind Tunnel Technology™ and Fan-On-Demand™ provide system protection in the dusty shop environment.
  • Innovative cable and gun storage manages clutter for a cleaner, organized weld-cell area. Cables remain connected to the power source and do not need to be switched for the different welding processes.
  • All system components have been selected to meet the needs of a pipe fabrication shop.

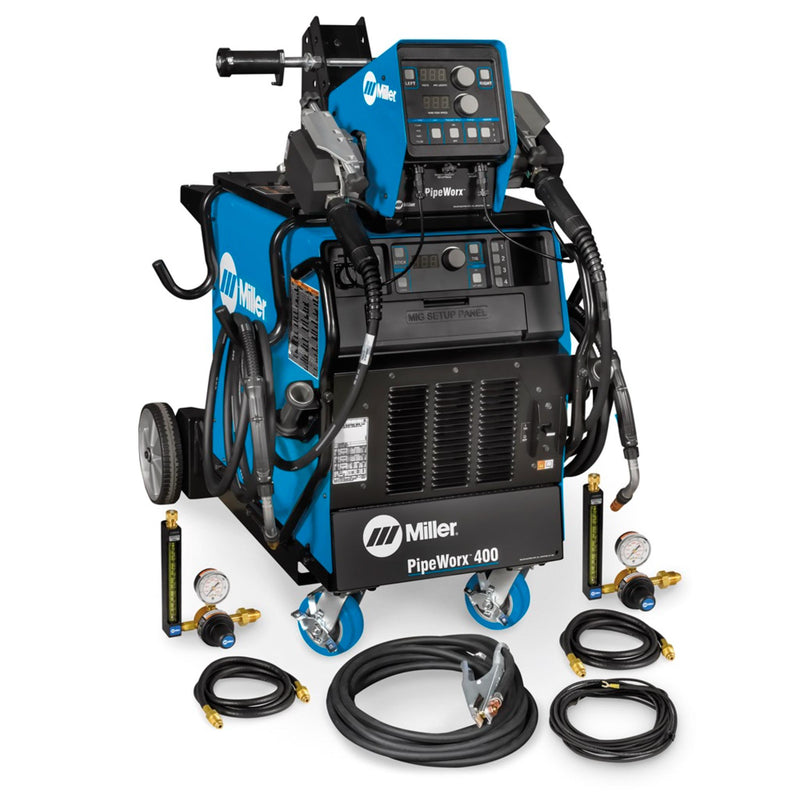

Included in Package:

  • PipeWorx 400 power source, 575V
  • Running gear with handles and dual cylinder rack with chains for gas cylinders - 300368
  • Two Bernard PipeWorx 300A MIG guns - 195400

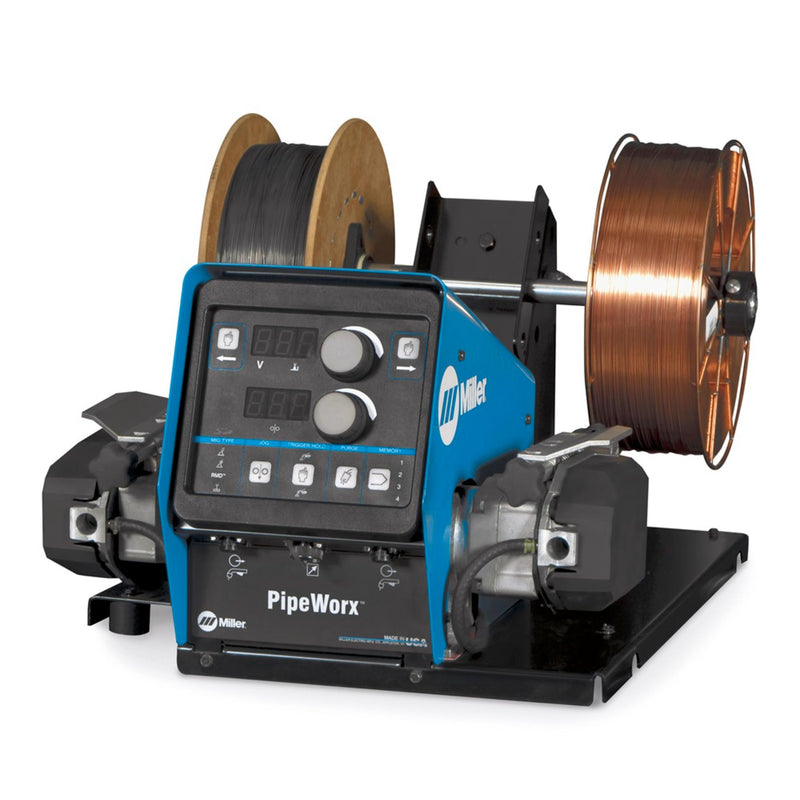

  • Pipeworx dual feeder with drive rolls - 300366
  • PipeWorx accessories kit for dual feeder - 300568
  • Cable kit with 25 ft. work sense leads - 300367
  • Weldready team support configuring to your needs

Full Specification Sheet

Hidden Features List
