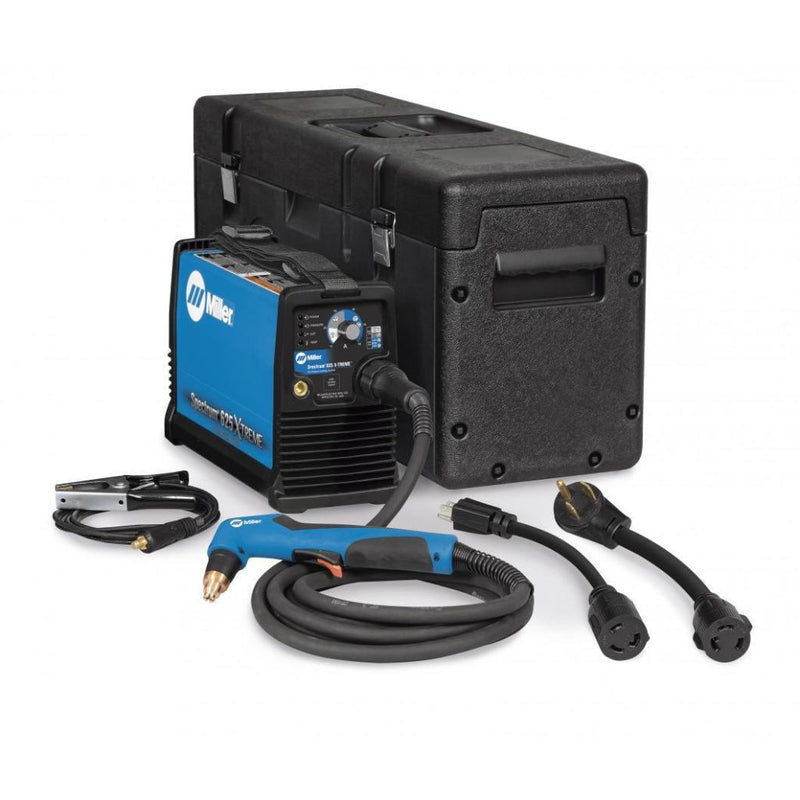

miller spectrum 625 plasma cutter package with carrying case cutting torch and ground clamp

Miller Spectrum 625 X-TREME Plasma Cutter w 12 ft. XT40 torch - 907579

by Miller Electric
SKU MIL907579
Save 5% Save 5%
$2,746.79
$2,746.79 - $2,746.79
$2,746.79
$2,610.03
$2,610.03 - $2,610.03
$2,610.03
Availability:
In stock
Request a quote

Description

Powerful 40 amps cuts up to 5/8 inch mild steel and weighs only 21 lbs. X-CASE provides ultimate protection during transport and storage.

Rated Cutting Capacity

The 5/8" rated cut capacity is based on traveling approximately 15 inches per minute to achieve a steady, precise cut. This is the key rating that should meet or exceed your typical cutting thickness requirements.

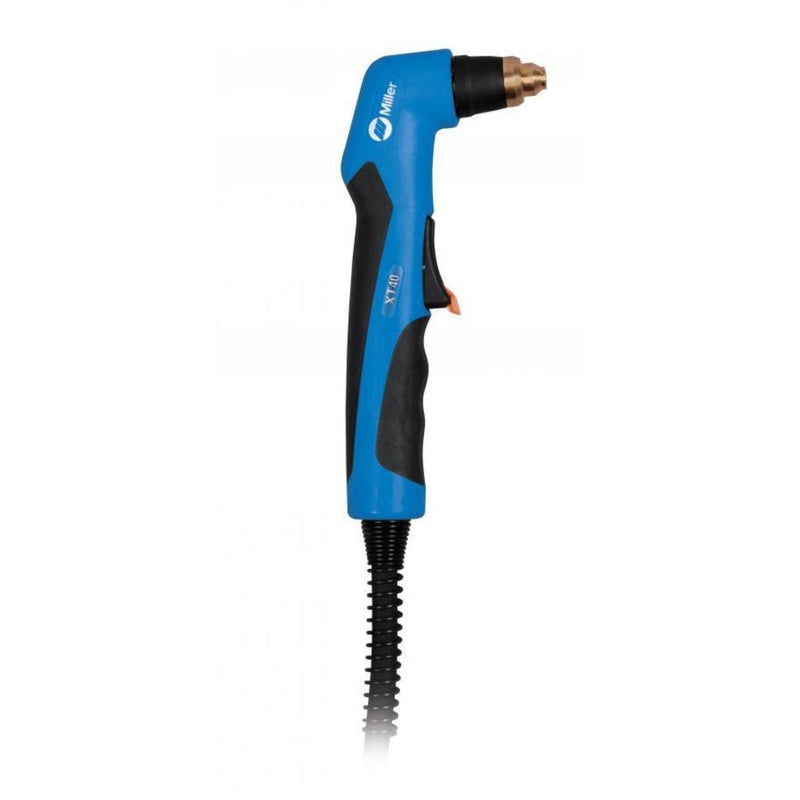

XT40 Torch
Ergonomic handle with unique no-slip grip, thumb guide and finger contours help prevent operator fatigue while the flexible cable makes maneuvering easy. Now comes with the new ultra flexible Quick Connect work lead with smaller heavy duty clamp.


Automatic Air Regulation
The unit automatically compensates for input pressure variation to provide constant recommended torch pressure for optimum cutting and gouging performance.


Auto-Line™ and MVP™ (multi-voltage plug) Adapters
Auto-Line provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120–240 VAC, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Miller’s multi-voltage plug (MVP™) Adapters allow connection to 120 or 240 V receptacles without tools—choose the adapter that fits the receptacle and connect it to the power cord.
Auto-Refire™
This technology provides ultimate customer convenience by automatically controlling the pilot arc when cutting expanded metal or multiple pieces of metal. The pilot arc will switch in and out as fast as needed when cutting expanded metal and provides maximum power for cutting thicker metal—all automatically! No need for manual re-triggering which reduces user hand fatigue.
Portability
Portable in the shop or at the job site—at 21 pounds the shoulder strap allows the end user to easily move from location to location.
Protective X-CASE™
Miller's X-CASE provides ultimate protection during transport and storage. Additional space is ideal for MVP Plug Adapters, consumable box, as well as gloves, eye protection, etc.


Included with Product

  • Spectrum 625 X-TREME
  • XT40 hand-held torch with 12-ft. (3.7 m) cable
  • Includes a complete set of 40 A consumables
  • Heavy-duty work clamp and 12-ft. (3.7 m) flexible cable with quick disconnect
  • X-CASE provides protection in transport and storage
  • Shoulder strap
  • 12-ft. (3.7 m) power cord with 240 V L6-30P twist lock plug for MVP Adapters
  • MVP Adapters with 240 V, 50A (6-50P) plug and 120 V, 15 A (5-15P) plug
  • Consumables box with 2 electrodes, 2 tips (40 A), 1 tip (30 A), drag shield (30 A), deflector, and air fitting

    Specifications

    Click the image below to view the full spec sheet

    Miller Spectrum 625 X-TREME Plasma Cutter w 12 ft. XT40 torch - 907579 Spec Sheet
