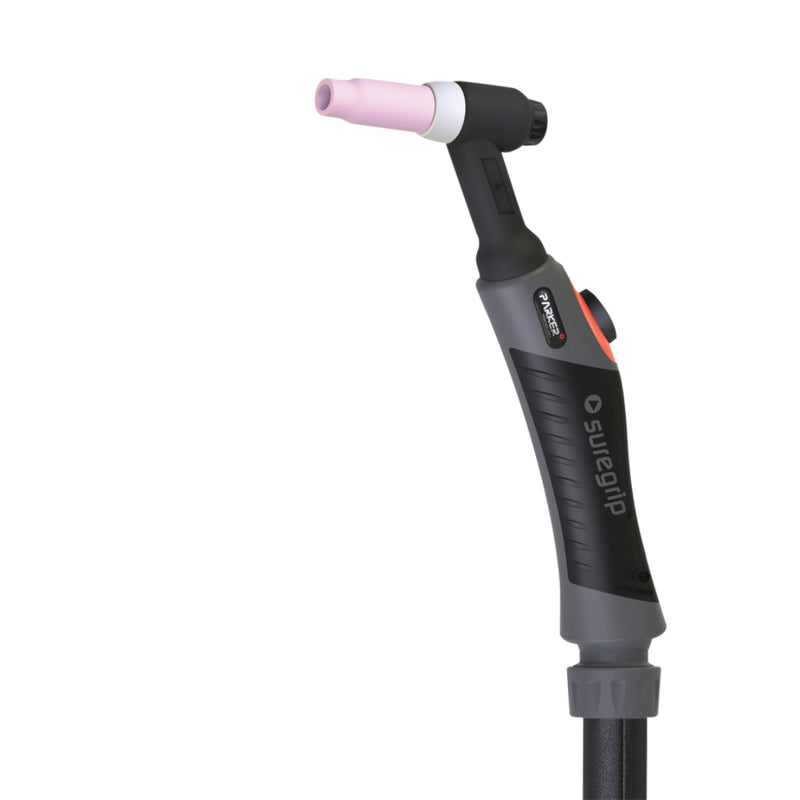

Name: Parker SGT18 Flex Head TIG Torch W/ Integrated Amperage Control
Brand: Parker Torchology
SKU: SGT18FX25APC4+PERBS+PERCP4+PWTA1820
Price: 266.93 USD
Availability: InStock

350 Amp Water Cooled TIG Torch W/ Switch in Handle

The parker SGT18 is the perfect choice for those that want a 350 amp water cooled TIG torch with the amperage controls built directly in to the torch handle. These torches are highly modular, and you can change the style of amperage control quickly and easily.

The torch itself has a comfortable handle, and a strain relief attachment to the weld leads to ensure freedom of motion. The leads have a full length covering that ensures the cables move as a single unit, and that the hoses stay protected from the abuse your shop will surely present. The first 32" of the covering is a soft leather, and the rest is an industrial rubber.

The Parker Suregrip SGT18 is the highest amperage capacity water cooled GTAW torch with built in controls available.

Features:

350 Amp water cooled @100% Duty Cycle
Can be configured to fit any TIG welder
Flexible TIG torch head
Includes flexible leather hose cover
Compatible with 3 series consumables
Includes a 25' lead
Industry standard fittings are compatible with Miller WP 18, Lincoln PTW 18, ESAB Heliarc HW18 CK Worldwide CK18, and all other industry standard 18 series TIG torches.

Amperage Control Options:

Blank - No Amperage Control - PERBS
Momentary On/Off Button - Push on, push off - PER1MS
Maintained On/Off Switch - Push and hold on, let go off - PER1MT
Momentary On/Off + Vertical Potentiometer - Push on, push off - Horizontal rotary dial for amperage control - PER1MS-H
Momentary On/Off + Horizontal Potentiometer - Push on, push off - Horizontal rotary dial for amperage control - PER1MS-H
Rotate On/Off - Dial clicks at start to engage HF start - PER1MTS

TIG Torch amperage control and on/off button options for parker TIG torches

Plug Configuration and Pin Count Options:

Miller Electric 14 pin plug - 1K Ohm Resistance
Lincoln 6 pin plug - 10K Ohm Resistance
ESAB/Tweco 8 pin plug - 5K Ohm Resistance
Everlast 7 pin plug - 22-25K Ohm Resistance

For Everlast machines, you will need a Quick Disconnect on the gas line
For Everlast water coolers, you will need 2x Quick Disconnect on the water lines

Power and Gas Connection Options:

Dinse 35 - External Gas
Dinse 35 - Gas Through

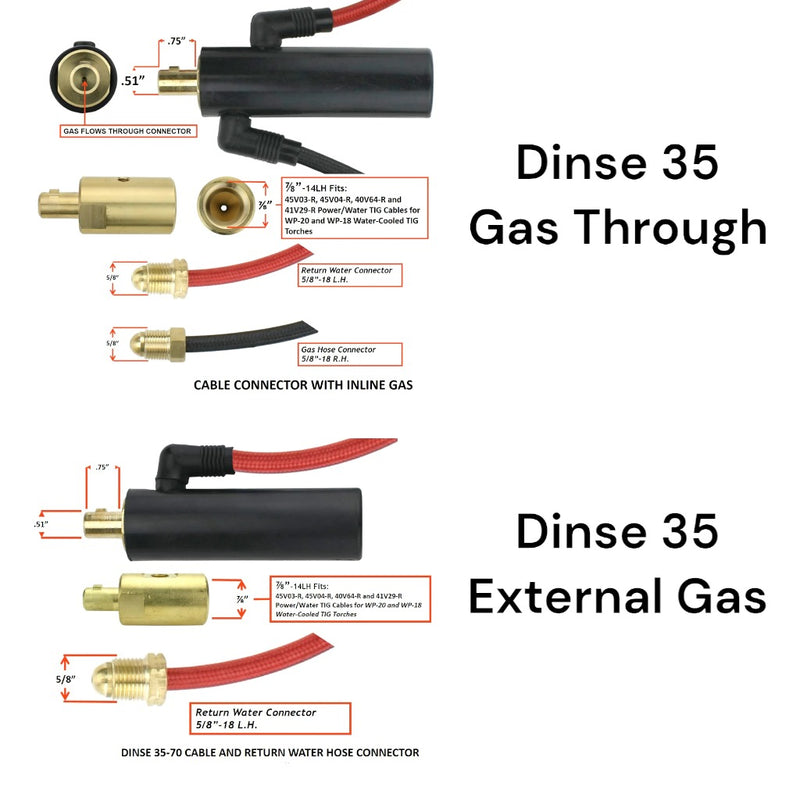

diagram showing threaded connections for a water cooled 18 or 20 tig torch

There are more ways this 18 series TIG torch can be configured than our website can handle. If you can't build a torch for your set up out of these options, or are confused by what you need, just send an email to sales@weld-ready.ca . We build custom tig torches to order every single day, and will be able to help you out.
