by Siegmund
SKU 2-160522
Original price
$51.09
-
Original price
$51.09
Original price
$51.09
$51.09
-
$51.09
Current price
$51.09
Availability:
In stock

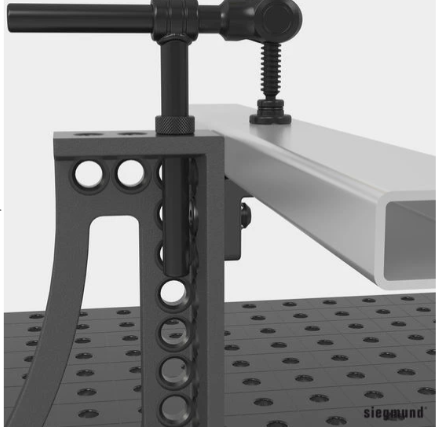

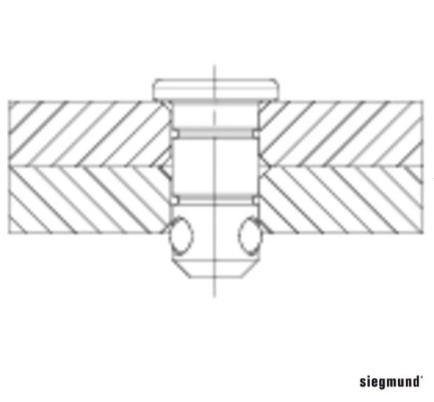

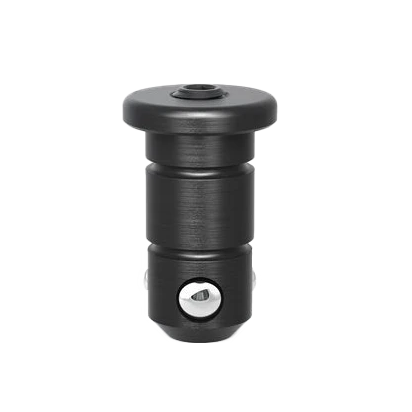

The Siegmund Short & Flat Fast Clamping Bolt (Burnished) is mainly used for clamping of oblong holes. Like the countersunk bolt, it reduces protrusion.

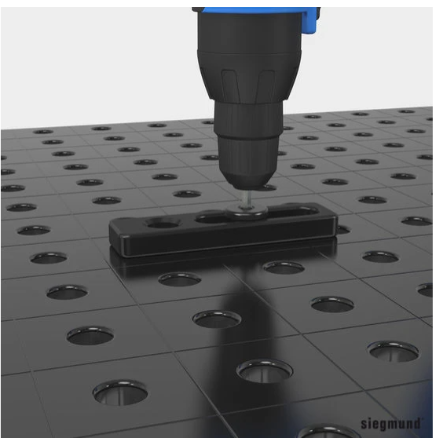

Ideal for cordless screwdriver with up to 10 Nm turning moment.
This Bolt is NOT approved for combining tables and U-shaped squares!
Clamping torque dependent on table type.
Specs and Features:
- Item No. 2-160522
- Burnished
- For Clamping 2 Siegmund Components
- Length: 36mm (1.41'')
- Diameter: 16mm (0.62'')
- Shearing Force: 55 kN
- Tightening Torque Steel: 10 Nm
- Tightening Torque Aluminum: 2.5 Nm
- Tensile Force: 10 kN
- Weight: 0.11 Ibs.
