Siegmund Welding Table 1,500mm x 1,500mm System 28 Extreme 8.7

SKU 4-280050.XD7 + 4x 280858.X-1
Original price $9,423.79 - Original price $10,369.19
Original price
$9,423.79
$9,423.79 - $10,369.19
Current price $9,423.79
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Size: Standard Siegmund Leg
Request a quote

1,500mm x 1,500mm Siegmund Welding Table - System 28 Extreme 8.7

Approximately 5' x 5' (59" x 59")

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

All of our system 28 welding tables come with a diagonal hole matrix which increases the hole count by 33% when compared with a traditional grid pattern.




Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.





Specs and Features

of the System 28, 8.7 Series Welding Tables



Welding Table Specs and Features:

  • Overall Tabletop Size: 1,500 x 1,500 x 200mm (59" x 59" x 7.87")
  • Borehole: Ø 28mm (1.10")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: 4-280050.XD7
  • Maximum Weight Load: 7,055 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,765 lbs. / 801 kg.
  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a radius of 3mm (0.118").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
  4. Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")
  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.


Welding Table Leg Options

Part Numbers, Specs and Pricing




Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

2-280858.X

4,400 lbs.

25.6" / 650mm

33.4" / 850mm

Included

2. Standard Leg
"Alternate Height"

2-280857.X

4,400 lbs.

29.5" / 750mm

37.4" / 950mm

$0

3. Height Adjustable Leg

2-280878.XX

4,400 lbs.

17.7"-27.5" / 450-700mm

25.6"-35.4" / 650-900mm

$170

4. Height Adjustable Leg
"Alternate Height"

2-280877.XX

4,400 lbs.

21.65"-35.4" / 550-900mm

29.5"-43.3" / 750-1,100mm

$173

5. Leg with Casters and
Locking Brakes

2-280876.XX

1,760 lbs.

25.6" / 650mm

33.4" / 850mm

$220

6. Height Adjustable Leg
with Casters and Locking Brakes

2-280879.XX

1,760 lbs.

21.6"-29.5" / 550-750mm

29.5"-37.4" / 750-950mm

$285

7. Floor Anchoring Leg

2-280874.XX

2,200 lbs.

25.6" / 650mm

33.4" / 850mm

$138




Siegmund System 28 Welding Table Leg Options - Full Specifications

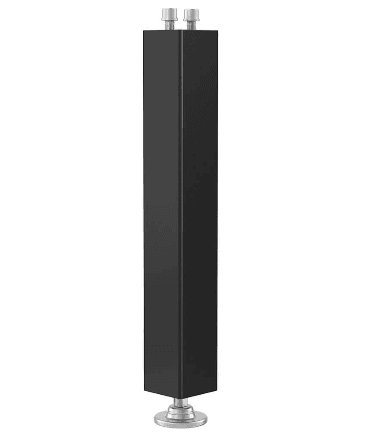

1. Standard Siegmund Leg(s)

  • Item No.: 2-280858.X
  • Leg Height: 25.6" / 650mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.

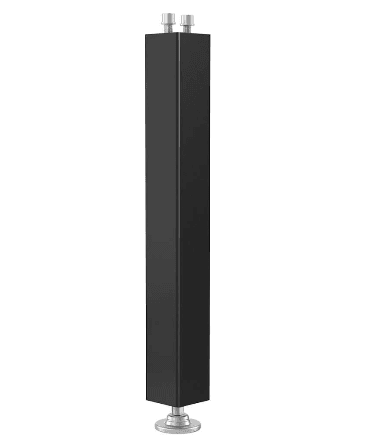

2. Standard Siegmund Leg(s) "Alternative Height"
  • Item No.: 2-280857.X
  • Leg Height: 29.5" / 750mm
  • Table Height: 37.4" / 950mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.

3. Height Adjustable Siegmund Leg(s)

  • Item No.: 2-280878.X
  • Leg Height (Adjustable): 17.7" - 27.5" / 450mm - 700mm
  • Table Height (Adjustable): 25.6" - 35.4" / 650mm - 900mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.

4. Height Adjustable Siegmund Leg(s) "Alternate Height"

  • Item No.: 2-280877.X
  • Leg Height (Adjustable): 21.65" - 35.4" / 550mm - 900mm
  • Table Height (Adjustable): 29.5" - 43.3" / 750mm - 1,100mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.

5. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 2-280876.X
  • Leg Height: 25.6" / 650mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,760 lbs.

6. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 2-280879.X
  • Leg Height (Adjustable): 21.6" - 29.5" / 550mm - 750mm
  • Table Height (Adjustable): 29.5" - 37.4" / 750mm - 950mm
  • Fine Adjustment: 0.78" / 20mm
  • Capacity Per Table Leg: 1,760 lbs.

7. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 2-280874.X
  • Leg Height: 25.6" / 650mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 4,400 lbs.
