2400mm x 1200mm or 4' x 8' siegmund system 16 welding table with 6 legs 160030-X7D

Siegmund Welding Table 2,400mm x 1,200mm System 16 Extreme 8.7

by Siegmund
SKU 4-160030.X7 + 6x 160858.X-1
$8,337.96 - $9,345.26
$8,337.96
$8,337.96 - $9,345.26
$8,337.96
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Size: Standard Siegmund Leg
Request a quote

2,400mm x 1,200mm Siegmund Welding Table - System 16 Extreme 8.7

Approximately 8' x 4' (94.5" x 47.25")

The System 16 Welding Table Series is the ideal choice for fine detail applications.

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.



Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.


Specs and Features

of the System 16, 8.7 Series Welding Tables


Welding Table Specs and Features:

  • Overall Tabletop Size: 2400x1200x100mm (94.48" x 47.24" x 3.93")
  • Borehole: Ø 16mm (0.629")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 11.5 – 13mm (0.45" - 0.51")
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: 4-160030.X7
  • Maximum Weight Load: 5,500 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 1,110 lbs. / 503 kg.

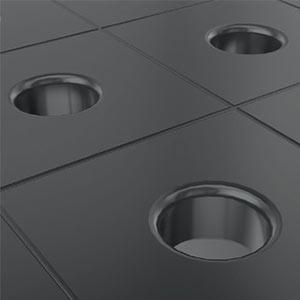

  1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").
  2. Boreholes have a radius of 2mm (0.078").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.

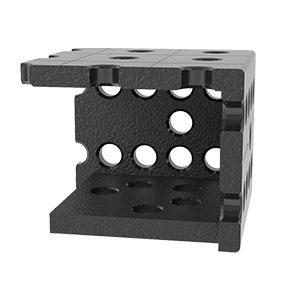

  4. Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")
  5. Metric Scaling on the surface.

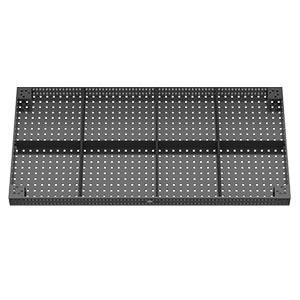

  6. Construction reinforced with ribbing.

Welding Table Leg Options

Part Numbers, Specs and Pricing


Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

Standard Leg

2-160858.X

2,200 lbs.

29.5" / 750mm

33.4" / 850mm

$0

Standard Leg "Alternate Height"

2-160857.X

2,200 lbs.

33.4" / 850mm

37.4" / 950mm

$0

Height Adjustable Leg

2-160877.XX

2,200 lbs.

21.65"-37.4" / 550-950mm

25.6"-41.3" / 650-1,050mm

$120

Leg with Casters and
Locking Brakes

2-160876.XX

440 lbs.

29.5" / 750mm

33.4" / 850mm

$133

Height Adjustable Leg
with Casters and Locking Brakes

2-160879.XX

440 lbs.

23.6"-35.4" / 600-900mm

27.5"-39.37" / 700-1,000mm

$200

Floor Anchoring Leg

2-160875.XX

2,200 lbs.

29.5" / 750mm

33.4" / 850mm

$138

Siegmund System 16 Welding Table Leg Options - Full Specifications

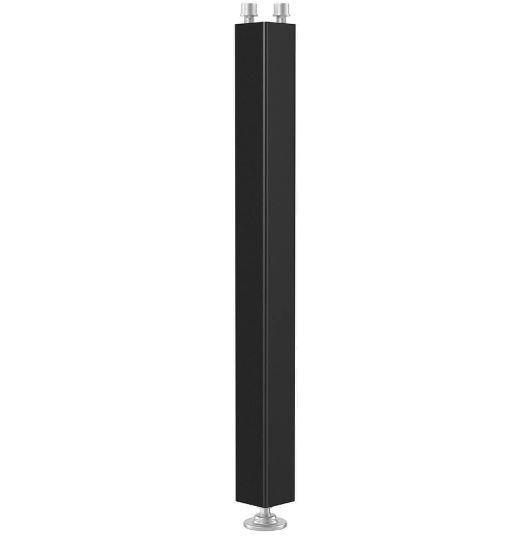

Standard Siegmund Leg(s)

  • Item No.: 160858.X
  • Leg Height: 29.5" / 750mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
Standard Siegmund Leg(s) "Alternative Height"
  • Item No.: 160857.X
  • Leg Height: 33.4" / 850mm
  • Table Height: 37.4" / 950mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.

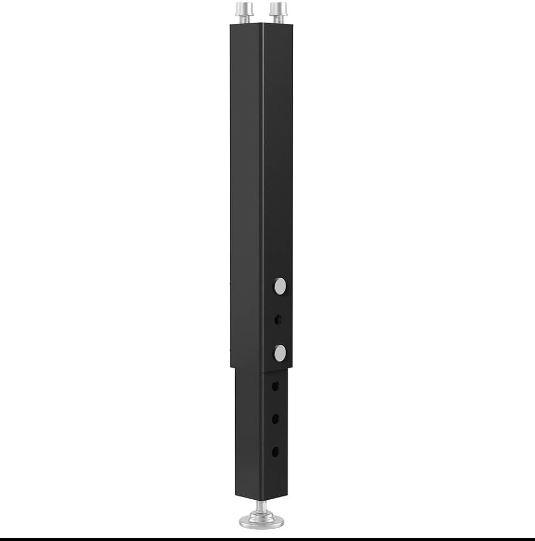

Height Adjustable Siegmund Leg(s)

  • Item No.: 2-160877.X
  • Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
  • Table Height (Adjustable): 25.6" - 41.3" / 650mm - 1,050mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.

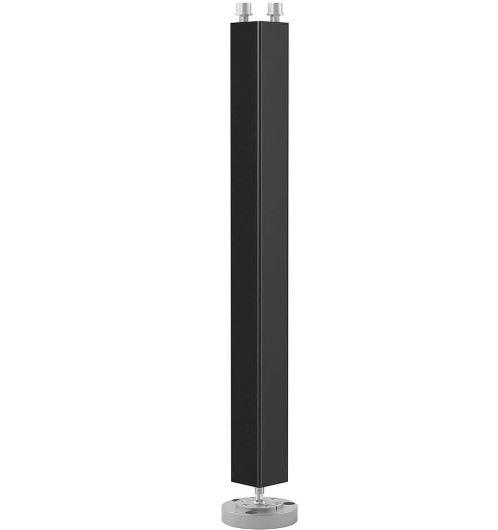

Siegmund Leg(s) for Floor Anchoring

  • Item No.: 2-160875.X
  • Leg Height: 29.5" / 750mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.96" / 50mm
  • Capacity Per Table Leg: 2,200 lbs

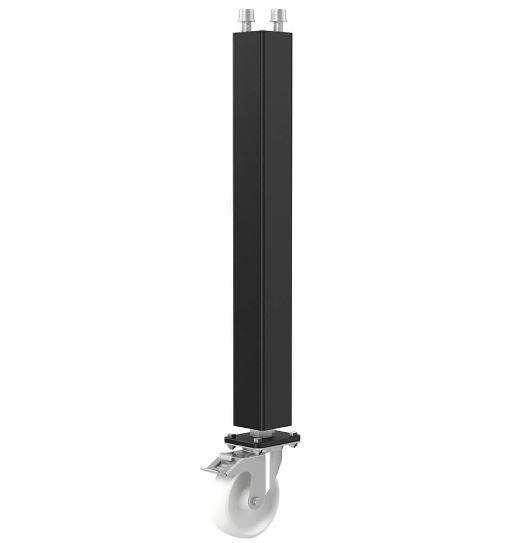

Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 2-160876.X
  • Leg Height: 29.5" / 750mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 440 lbs.
  • Note: These welding table legs that are equipped with casters and locking brakes are generally not recommended for Welding Tables with 6 or 8 Table Leg Configurations.

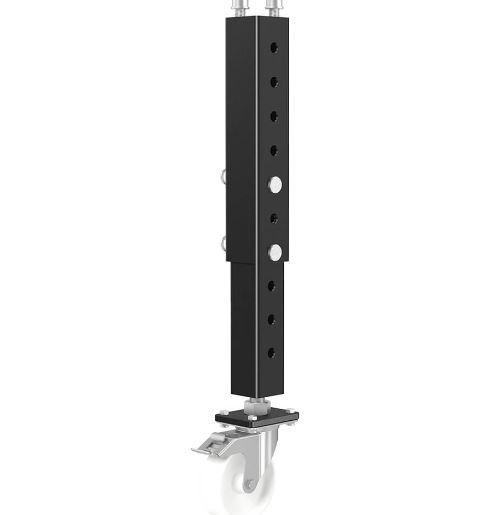

Height Adjustable Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 2-160879.X
  • Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
  • Table Height (Adjustable): 27.5" - 39.37" / 700mm - 1,000mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 440 lbs.
