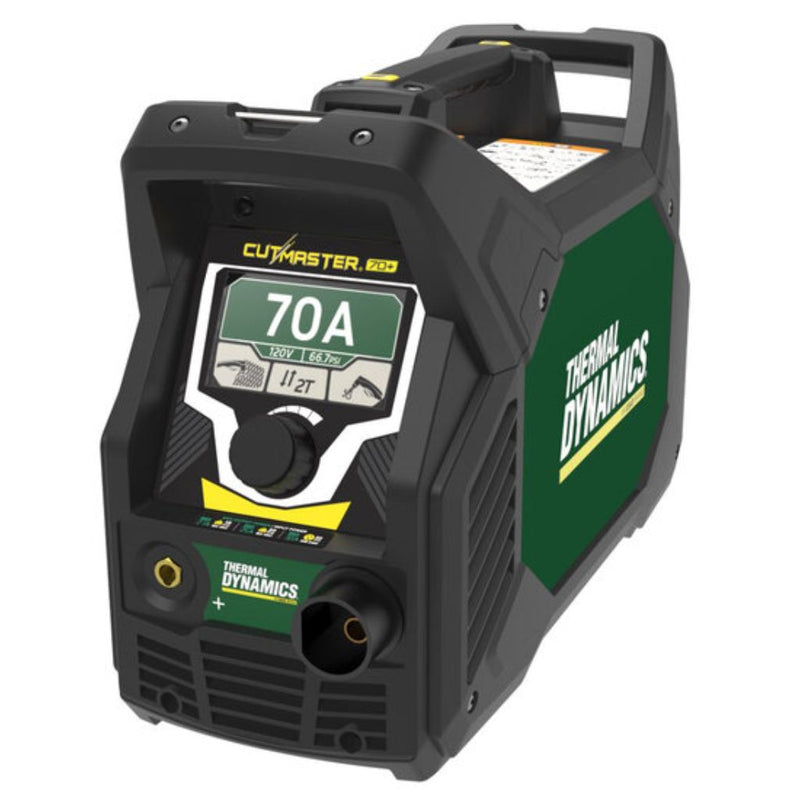

Thermal Dynamics Cutmaster 70+

Thermal Dynamics Cutmaster 70+

The ESAB CutMaster 70 is a high-performance manual plasma cutter designed for precision and reliability. Ideal for cutting a wide range of materials, including steel, stainless steel, and aluminum, it delivers clean, fast cuts with minimal slag. Featuring advanced technologies and a 3 year warranty, the CutMaster 70 ensures durability and exceptional quality. With its user-friendly color screen interface, compact design, and lightweight portability, this plasma cutter is perfect for both professional and DIY applications.

Features:

• Portable and durable with three handles and lightweight, industrial all-weather housing

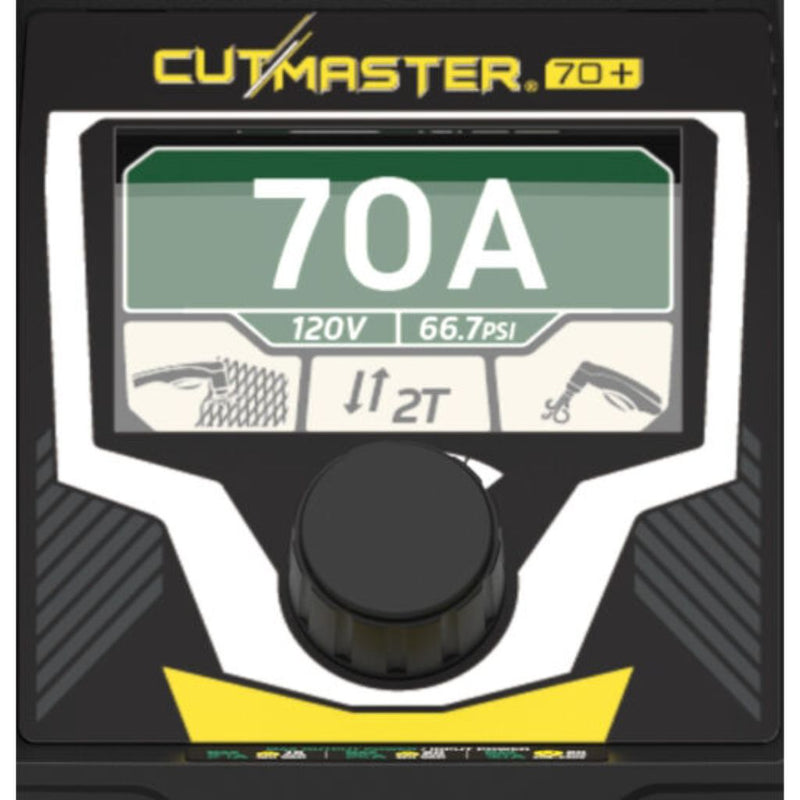

• Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
• includes industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
• Switch between normal and grate cutting modes
• Post-cut air purge to expand consumable life
• Compatible with all ATC torch connections
• Includes a complete package of general cutting and gouging consumables for most applications
• Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads

• CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows:
  1. Start/Stop
  2. OK to Move
  3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)


Included With Delivery:

• Cutmaster 70+ power supply
•  5 m (16 ft) SL60 75° torch with lead
•  3 m (10 ft) work lead with 10 mm² (4 AWG) ground clamp 9 mm (3/8 in.)
• 120/240V Adapter
•  OKC/dinse 10-25 connector
• Consumables kit
• Regional 1/4” air fitting


CLICK HERE FOR FULL FACT SHEET
