Tweco Style 23 Series Thread On MIG Nozzles

by Generic
SKU 23-37
Original price $7.42 - Original price $7.42
Original price
$7.42
$7.42 - $7.42
Current price $7.42
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock
Availability:
In stock

Option: 23-37 (3/8")
Request a quote

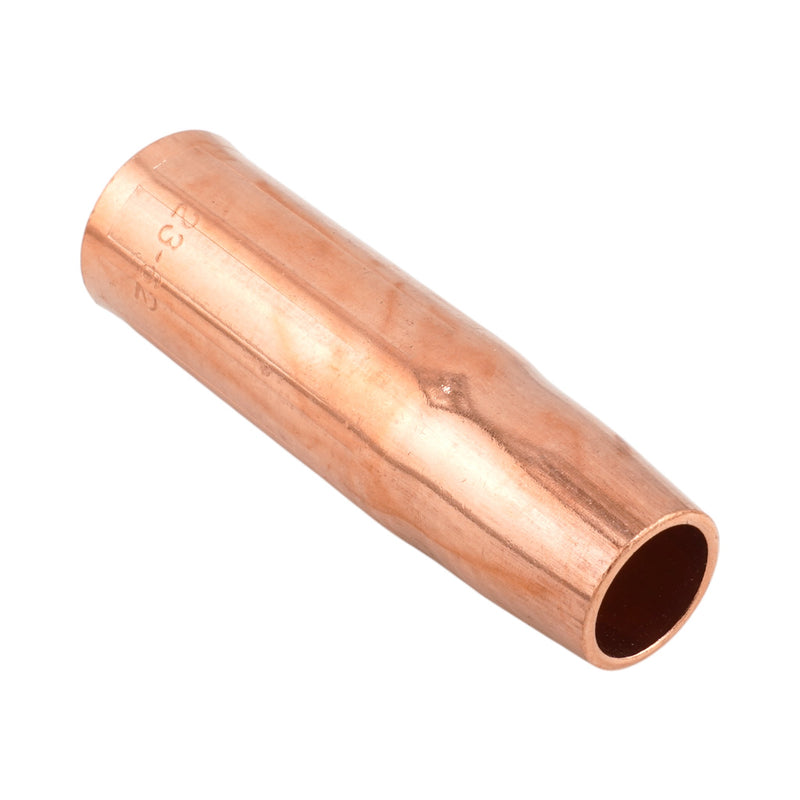

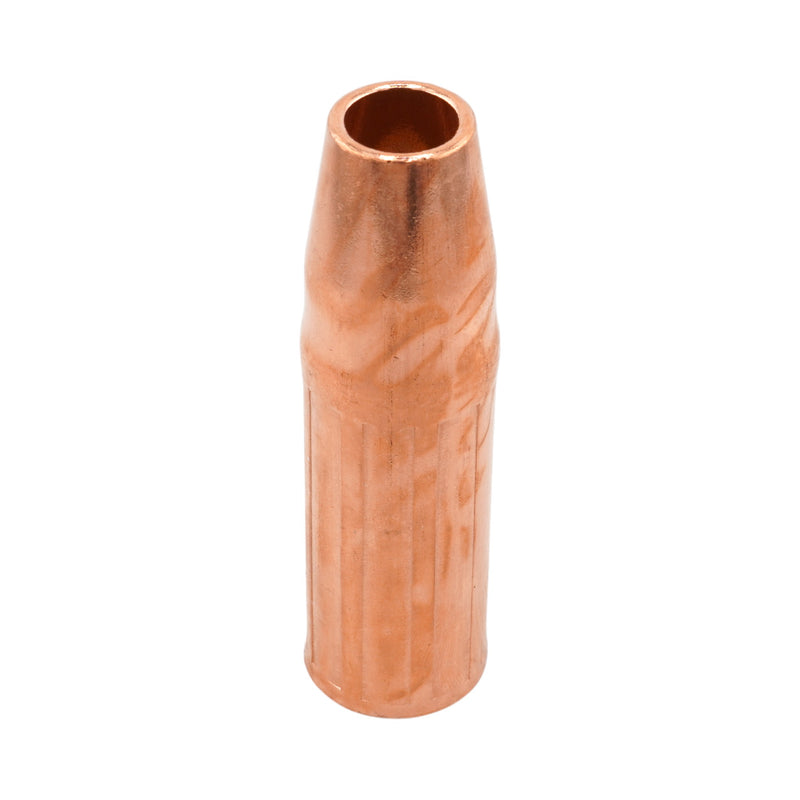

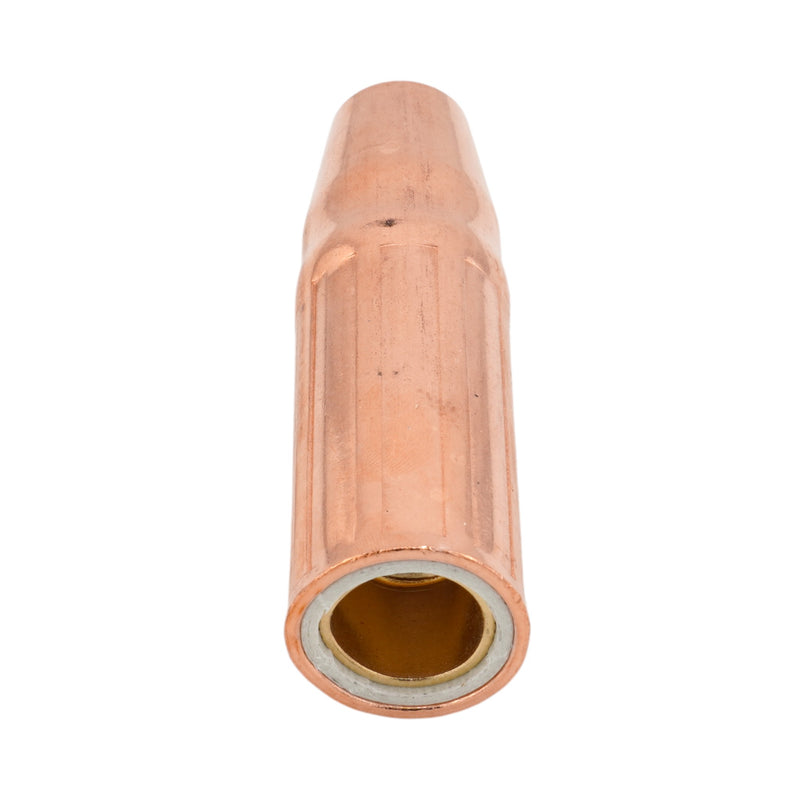

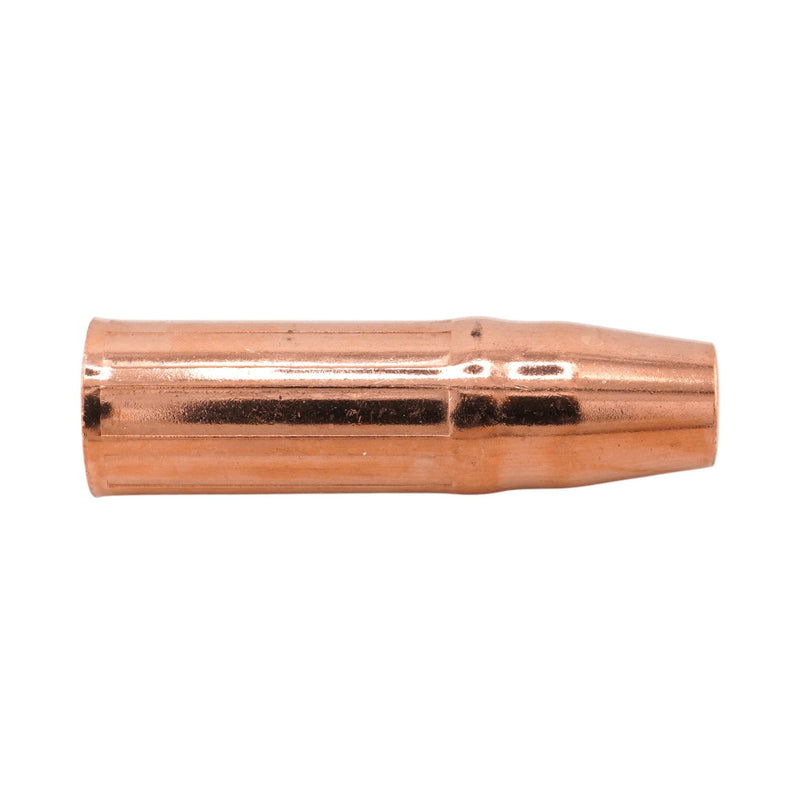

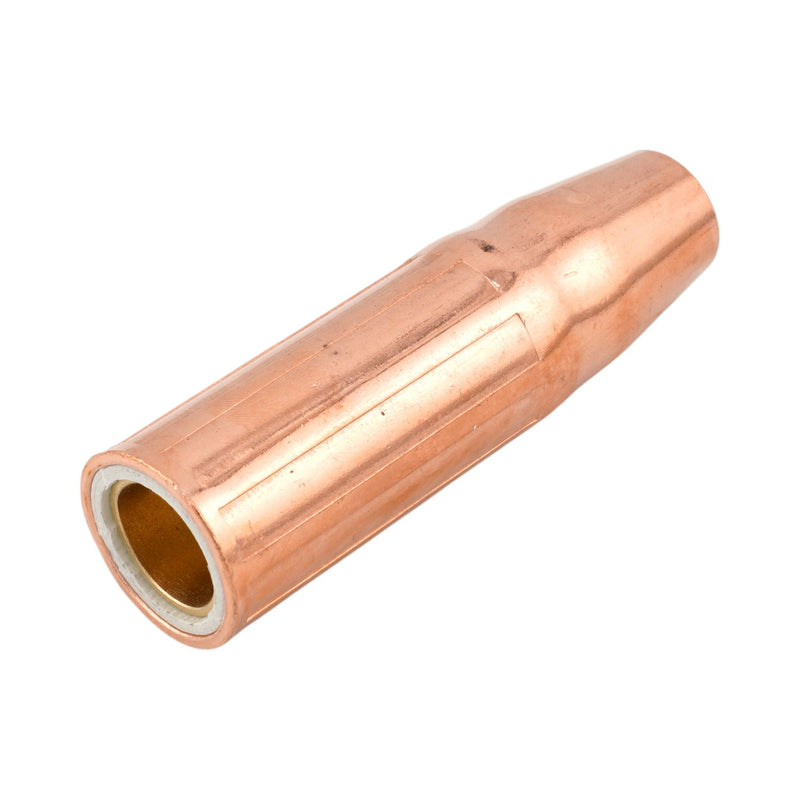

Tweco 23 Series MIG Nozzles

Self insulated 23 series MG nozzles thread directly on to Tweco 52 diffuser. No need for additional insulator. Option to choose whether your contact tip is flush with the nozzle, or recessed by 5/32".

Sold Individually

Part Numbers and Bore Diamters:

  • 23-37 = 3/8" ID Inner Diameter, Tip Recessed
  • 23-37F = 3/8" ID Inner Diameter, Tip Flush
  • 23-50 = 1/2" ID Inner Diameter, Tip Recessed
  • 23-50F = 1/2" ID Inner Diameter, Tip Flush
  • 23-62 = 5/8" ID Inner Diameter, Tip Recessed
  • 23-62F = 5/8" ID Inner Diameter, Tip Flush
  • 23-75 = 3/4" ID Inner Diameter , Tip Recessed
  • 23-75F = 3/4" ID Inner Diameter, Tip Flush

Selling Features:

  • 3-piece nozzle design includes: Nozzle Housing - Cut and Formed from 122 DHP copper alloy tubing, Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the gas diffuser, Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
  • Easy identification - Part No. rolled stamped on the outside surface
  • For use with 14 series contact tips

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Ben
Good fit, works well

These are a good replacement for the slip-on #4 nozzles on my Pro Point 250A welder, they are solid as opposed to the slip-on that move around a bit too much for my liking. The recess is slightly more than advertised but not a problem.
Shipping was very quick as well.
